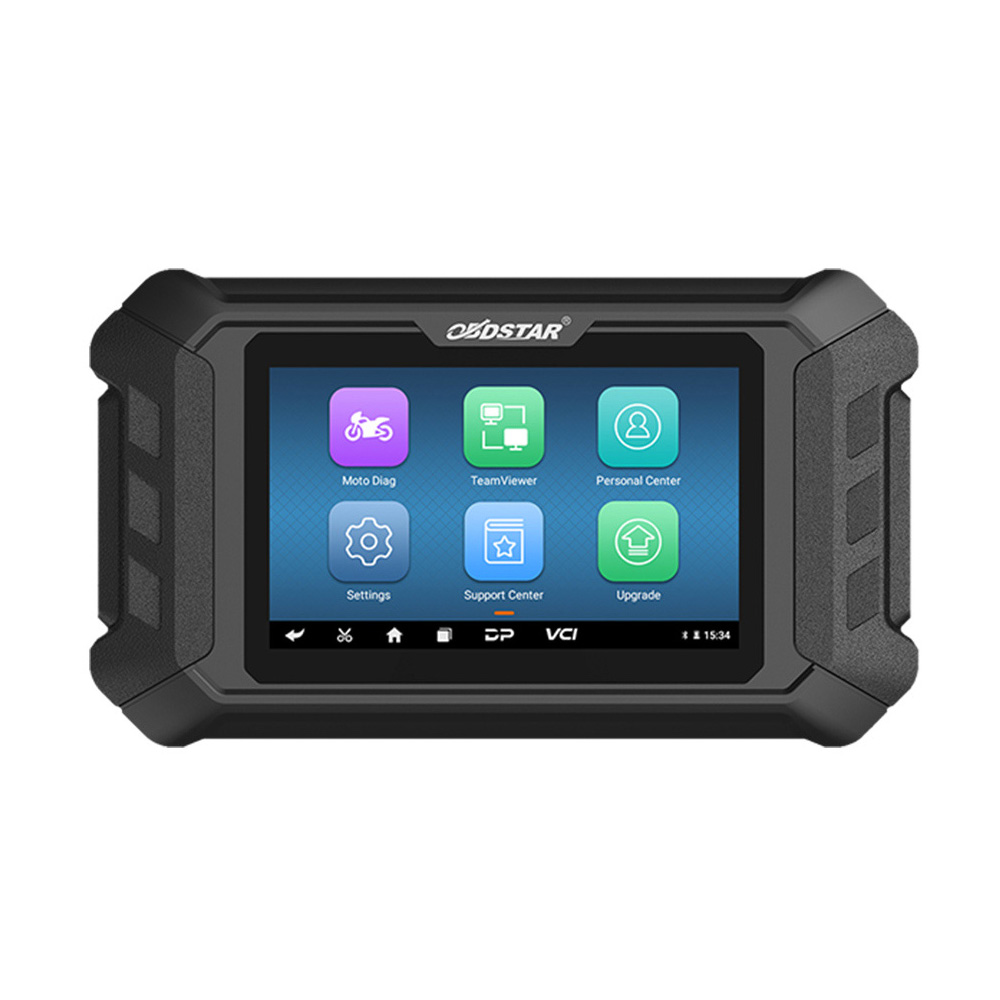

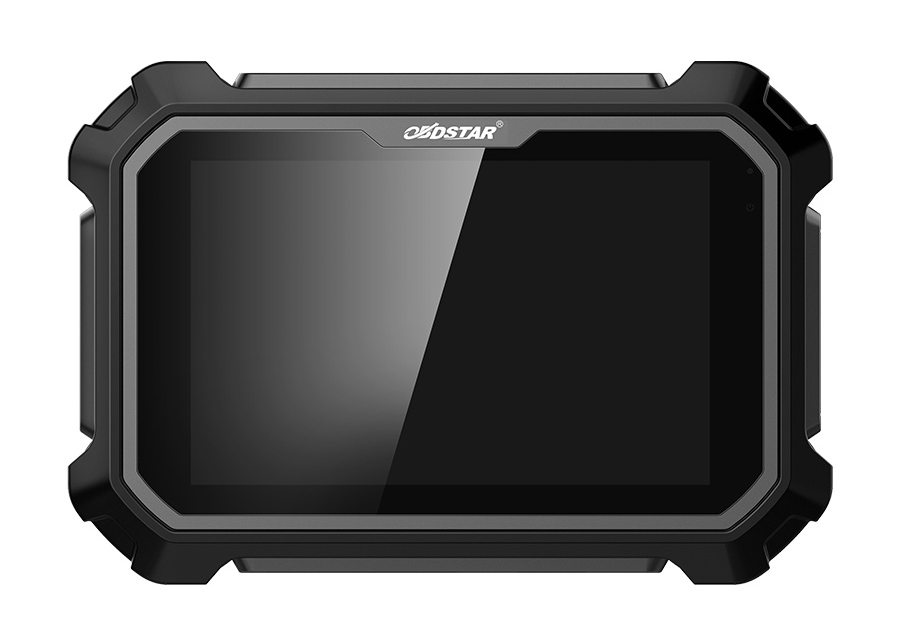

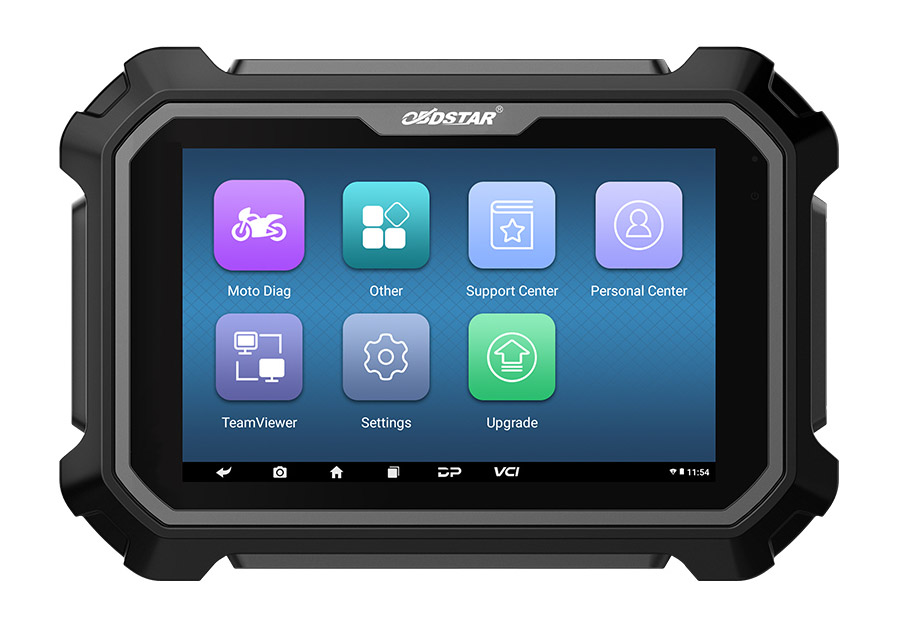

Obdstar MS80 Motorcycle Scanner Diagnostic Tool for Motorcycle WC Snow mobile
MS80 has professional-level intelligent diagnosis, providing an unprecedented intelligent diagnosis and maintenance experience-the first fault guidance, technical bulletin, data flow assistance, diag socket, and other functions to help you diagnose accurately and efficiently; exclusive interactive circuit diagram and electrical query system, easy troubleshooting Failure, so you have no worries about the car diagnosis!
Functions:
1. New Android 5.1.1 operation system
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.;
4. Menu Arbitrary selection is more convenient and quick;
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the Internet, one-click software upgrade;
7. One-Click remote function, OBDSTAR technical staff remote assistance;
8. Support the fault diagnosis of most of the world's luxury locomotives and tens of thousands of models.
Advantage function:
1. The first fault guidance, Help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
2. Exclusive interactive circuit diagram and electrical description query function, so that you can have a worry-free diagnosis;
3. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
4. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting , EOL mode, transmission memory reset, clear computer memory, etc.
Motorcycle/snowmobile/ATV/UTV diagnostic function support car series:
Asia:
Honda、Hondamontesa、Kawasaki、Kymco、Suzuki、SYM、Yamaha
Europe:
Aprilia、Benelli、BMW、Derbi、Ducati、Gasgas、Gilera、KTM、Malaguti、Moto Guzzi、MV Agusta、Peugeot、Piaggio、Triumph、Vespa
Americas:
BRP、Harley Davison、Indian、Victory
Motorcycle key programming support car series:
Gilera、Harley Davison、Peugeot、Piaggio、Triumph、Vespa
PWC support car series:
BRP、Honda、Kawsaki、Yamaha
More functions under developing...
Function Display:

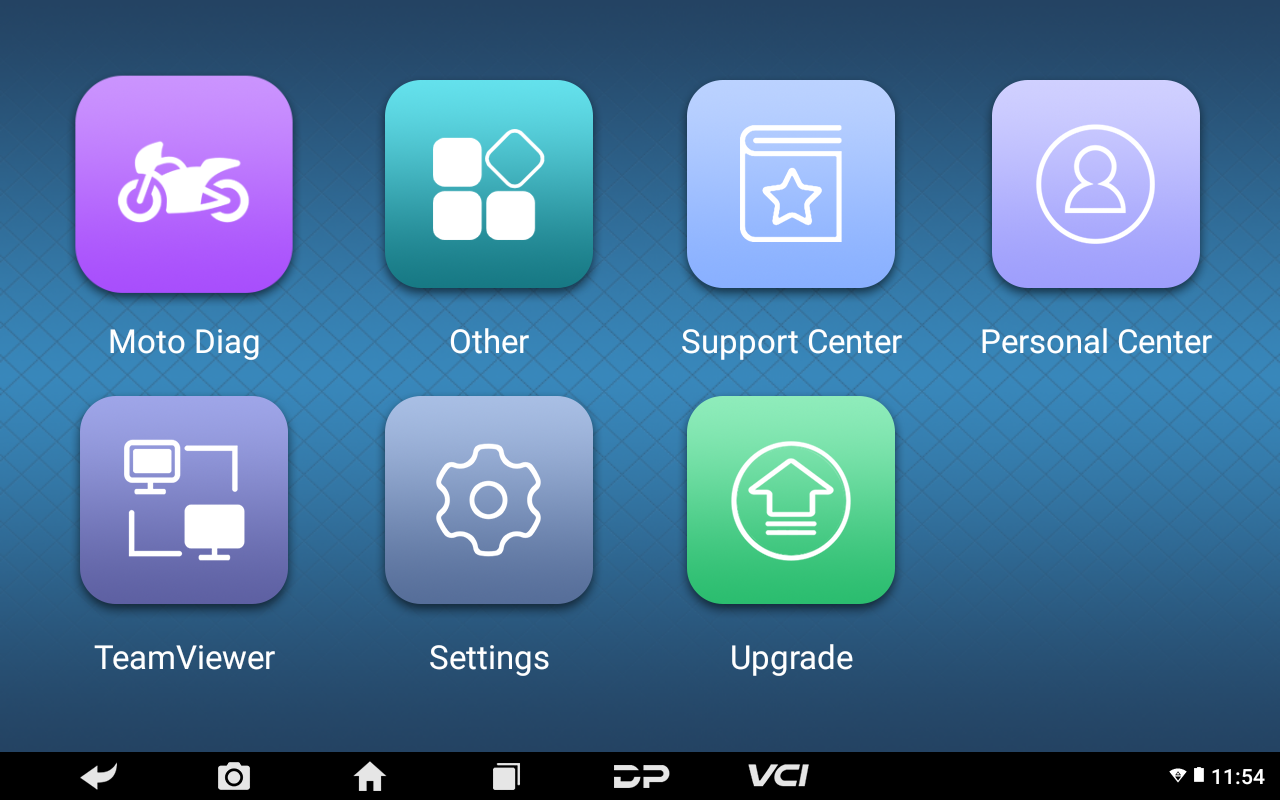

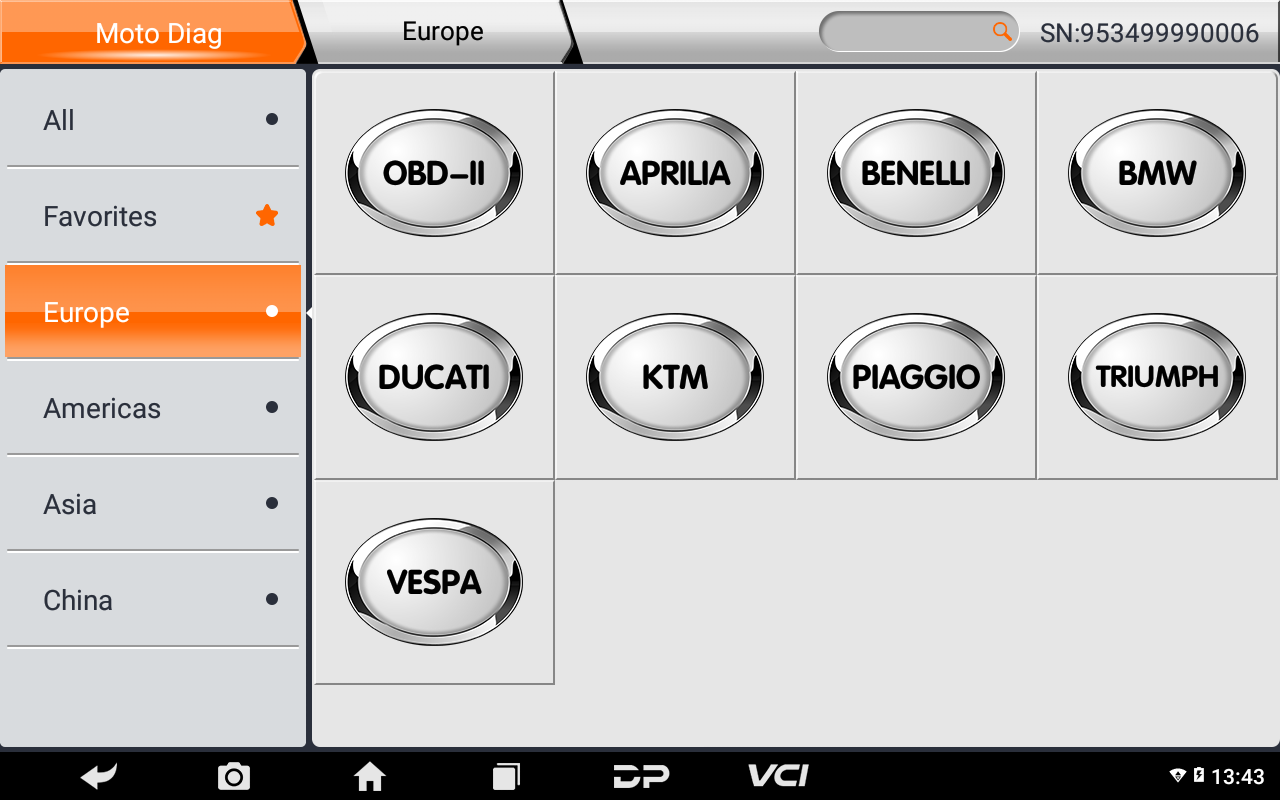

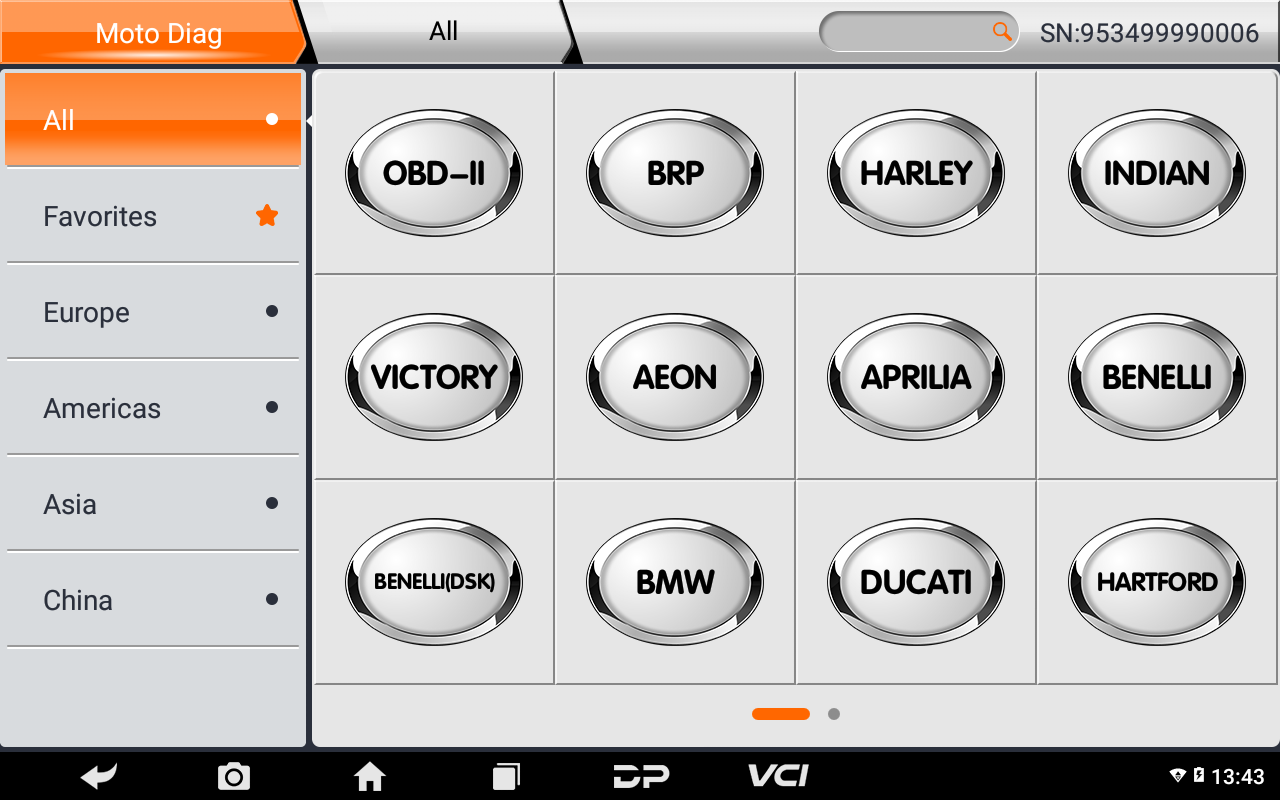

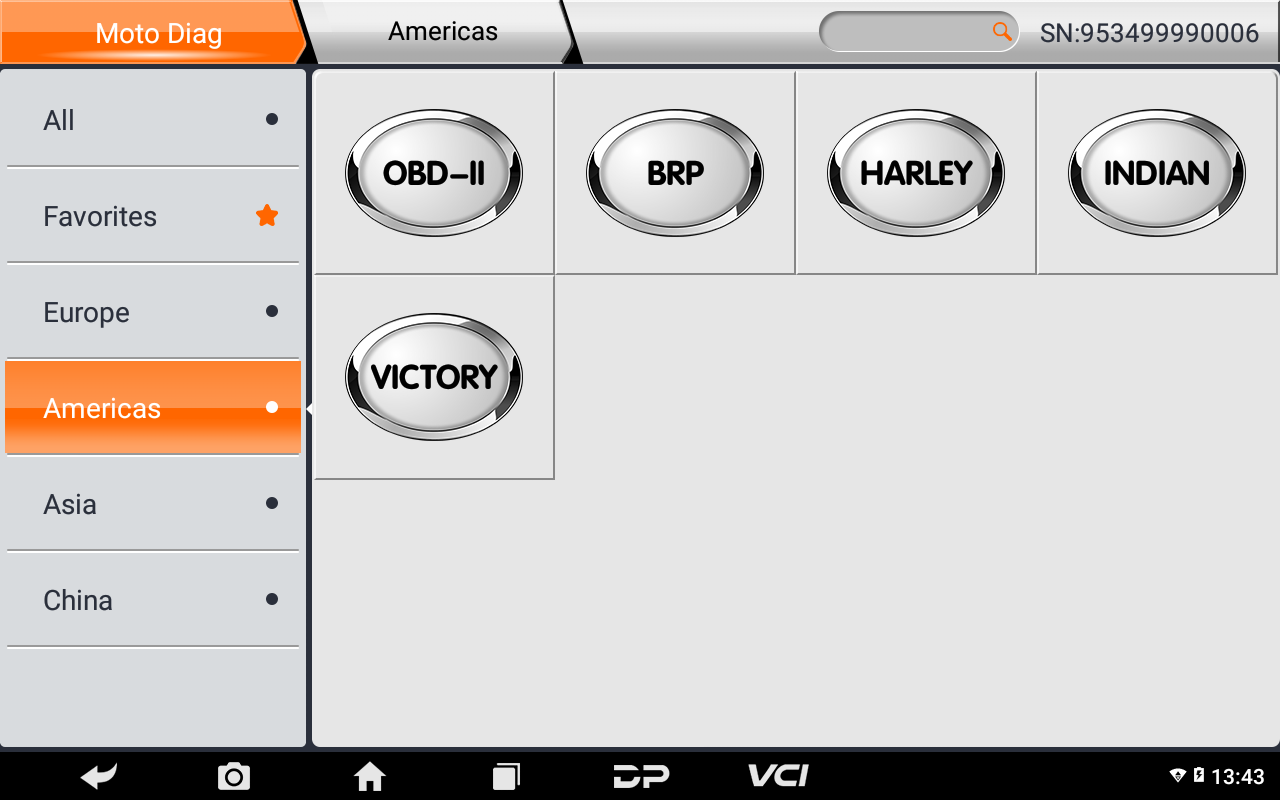

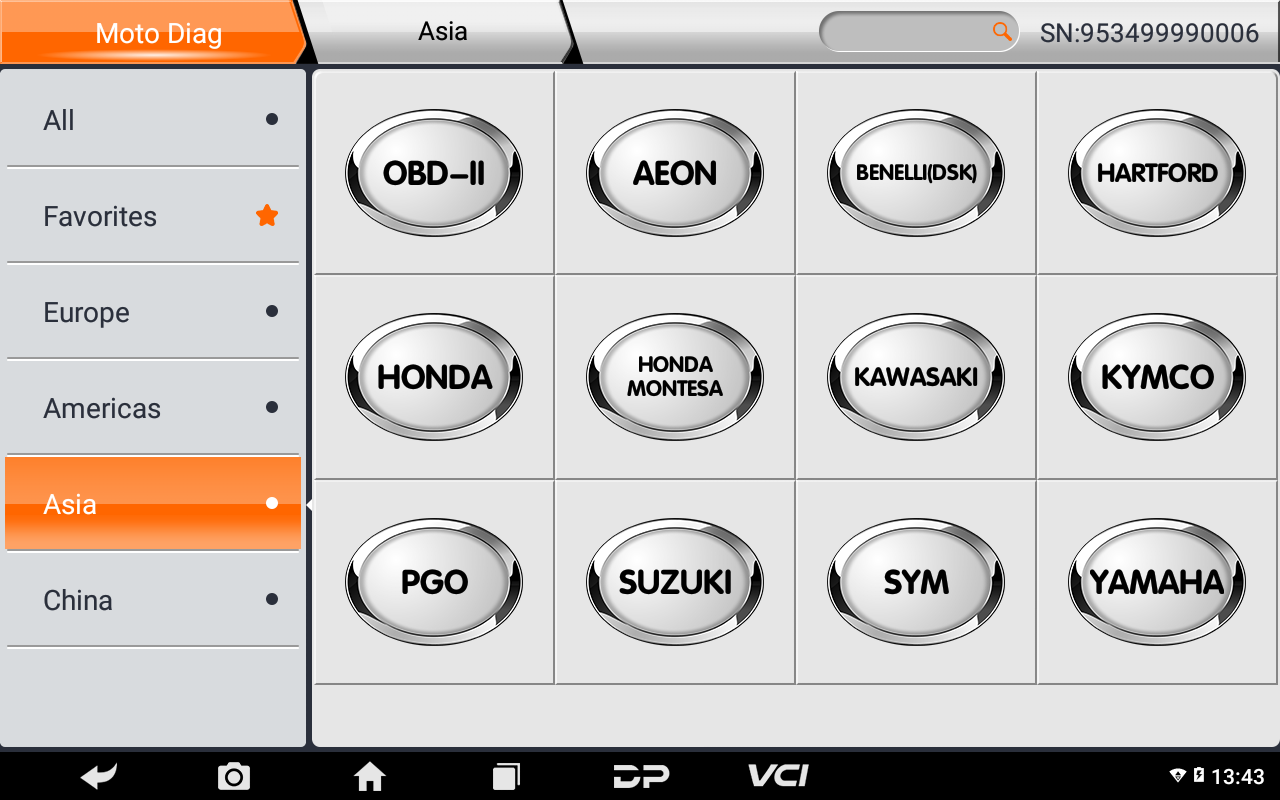

1)Main Page/Brand Supported

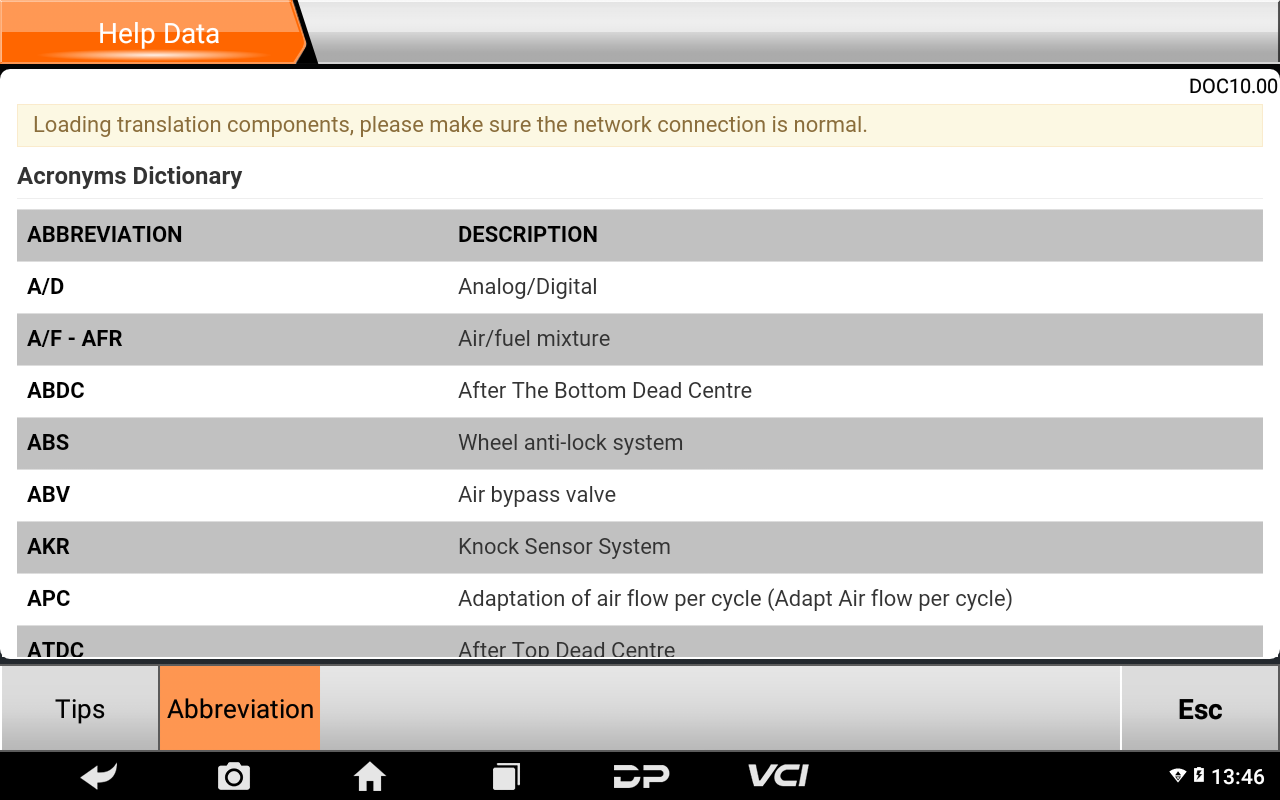

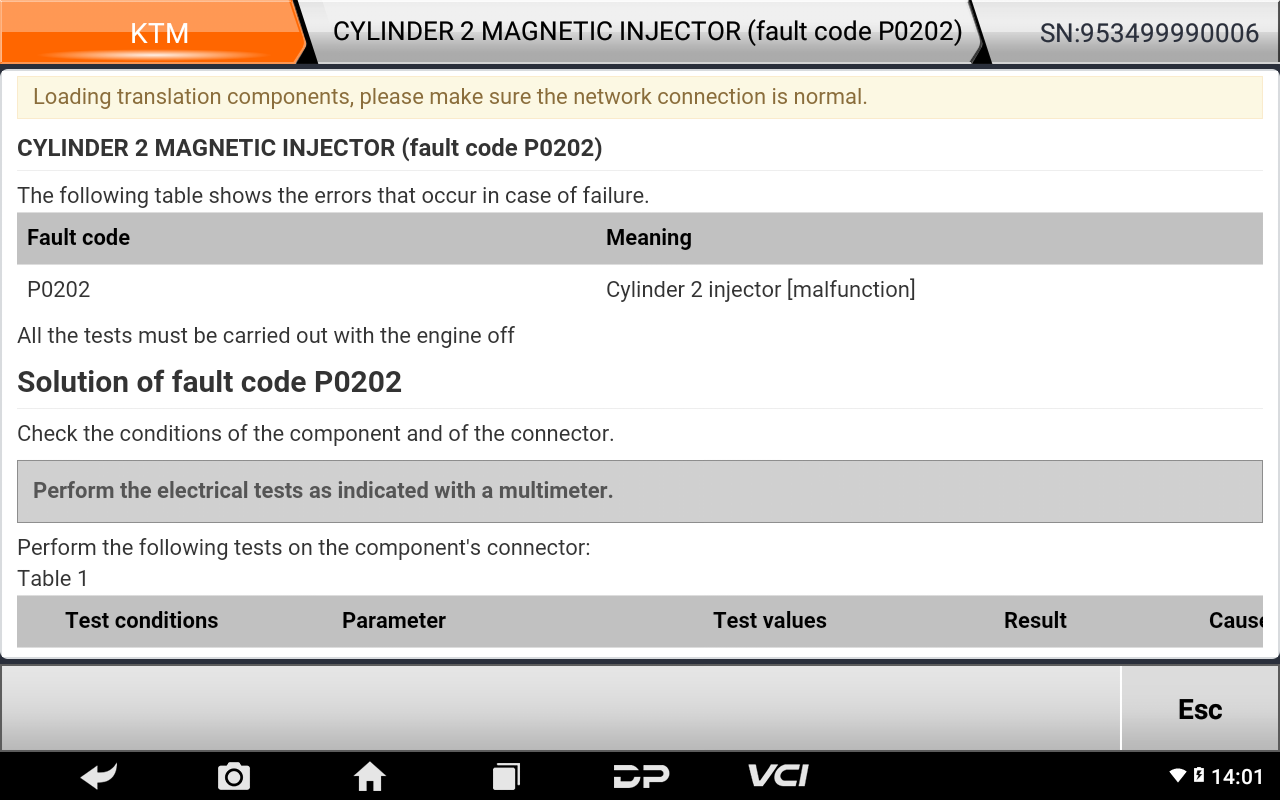

2) Help Data/Technical Bulletin/Fault Guidance

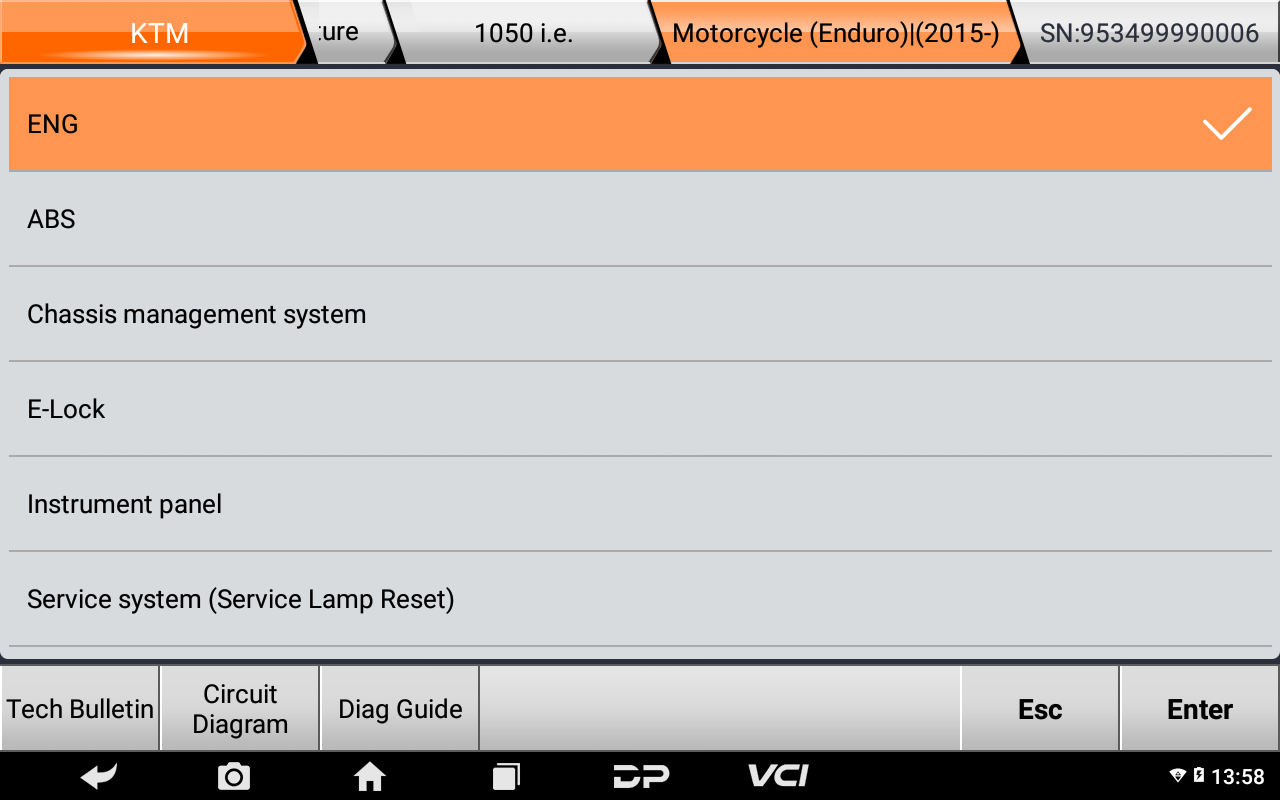

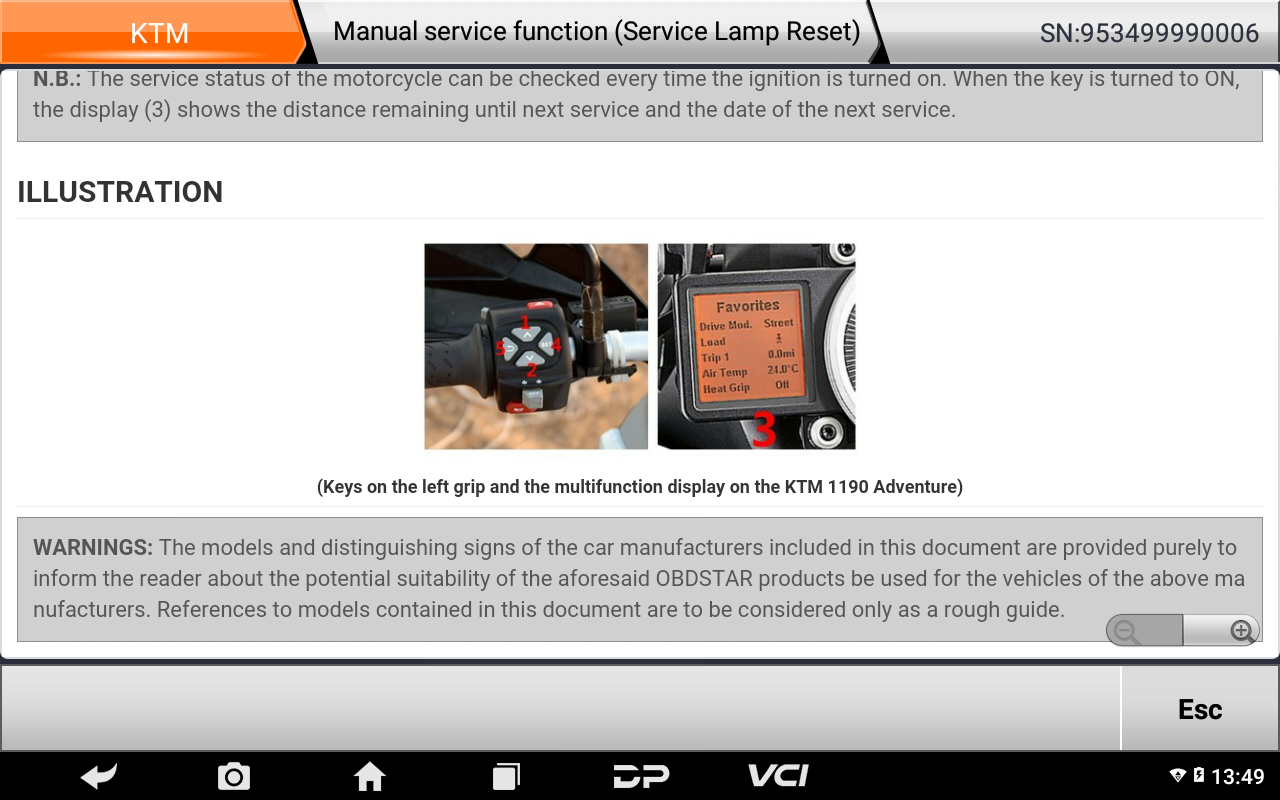

3）Supported System List/ Manual Service Function

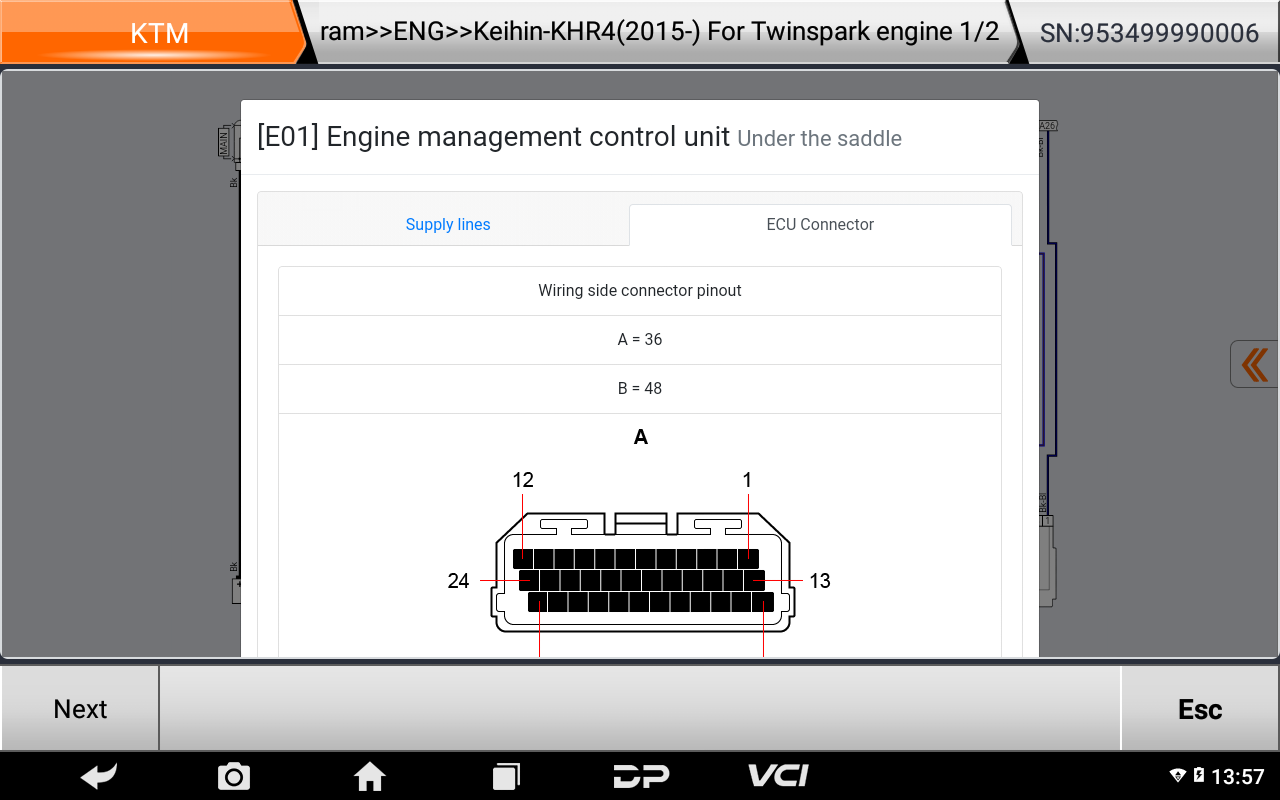

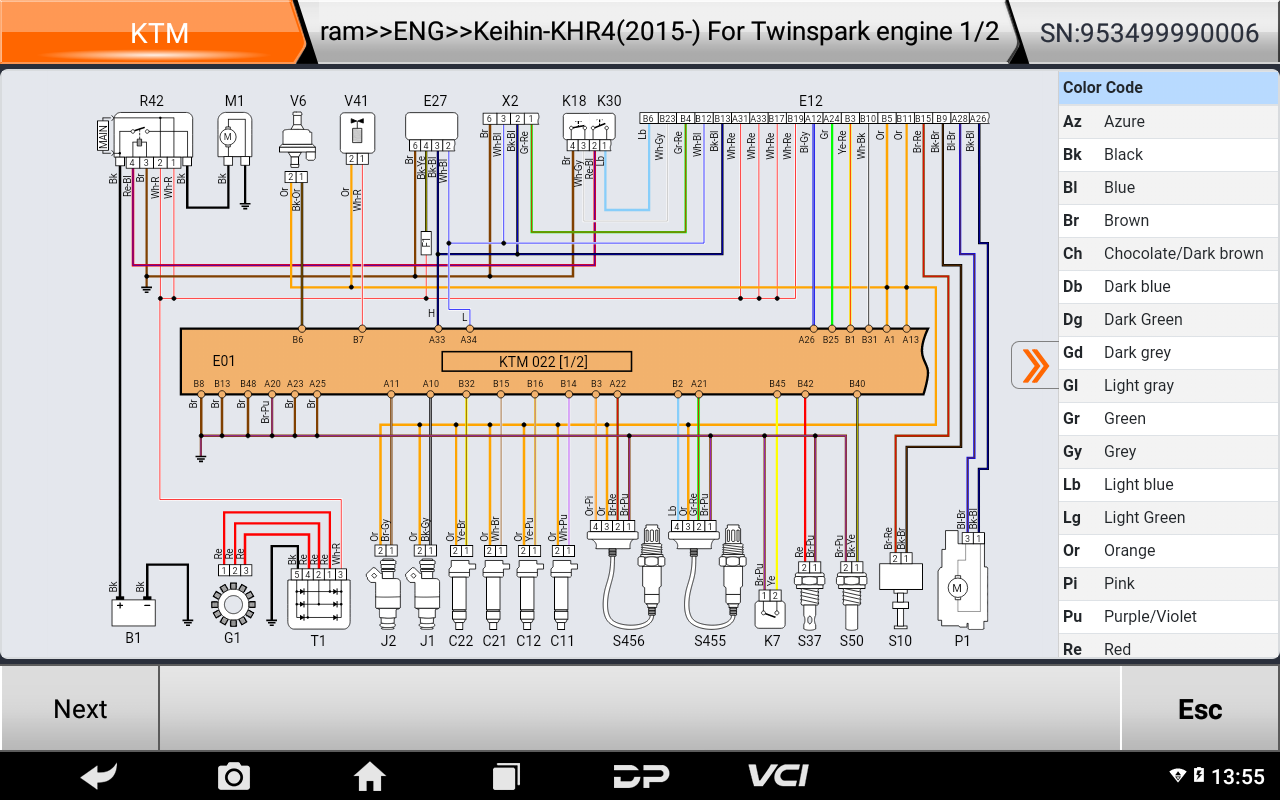

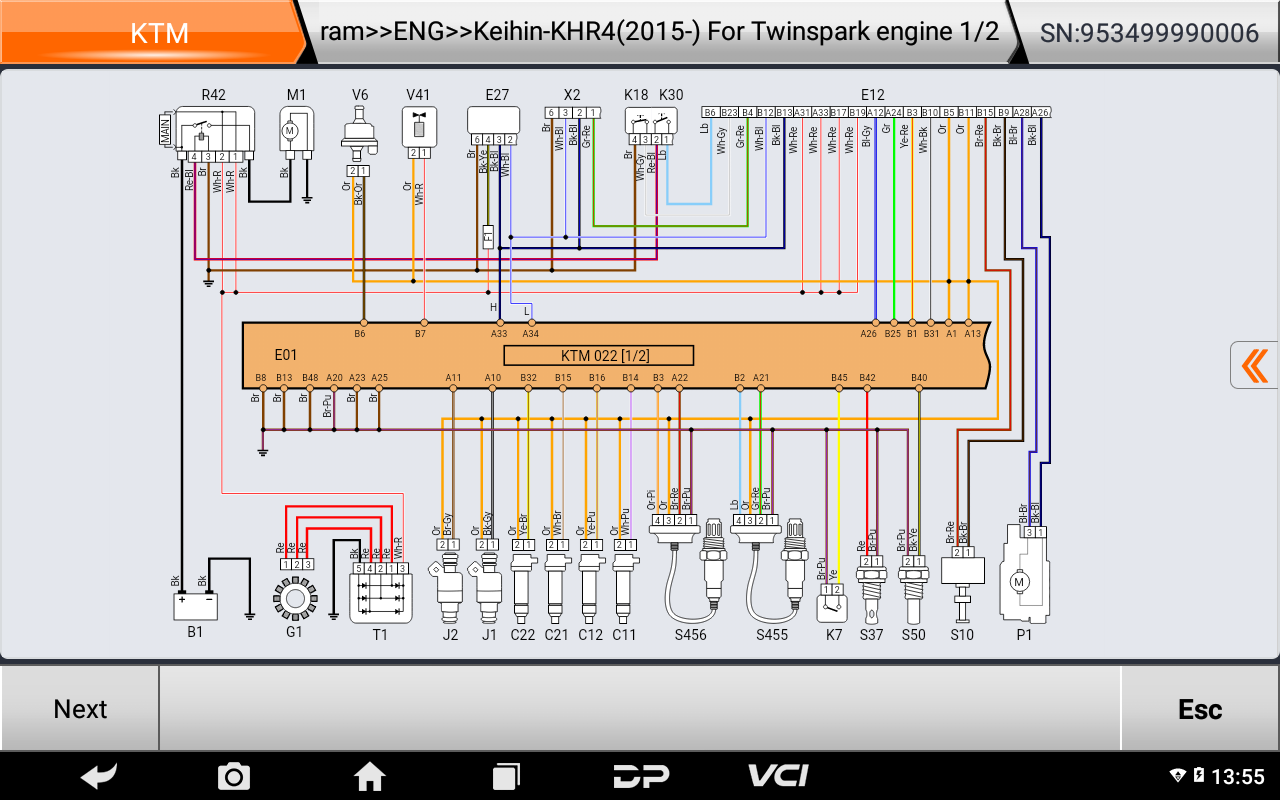

4) Interactive Circuit Diagram

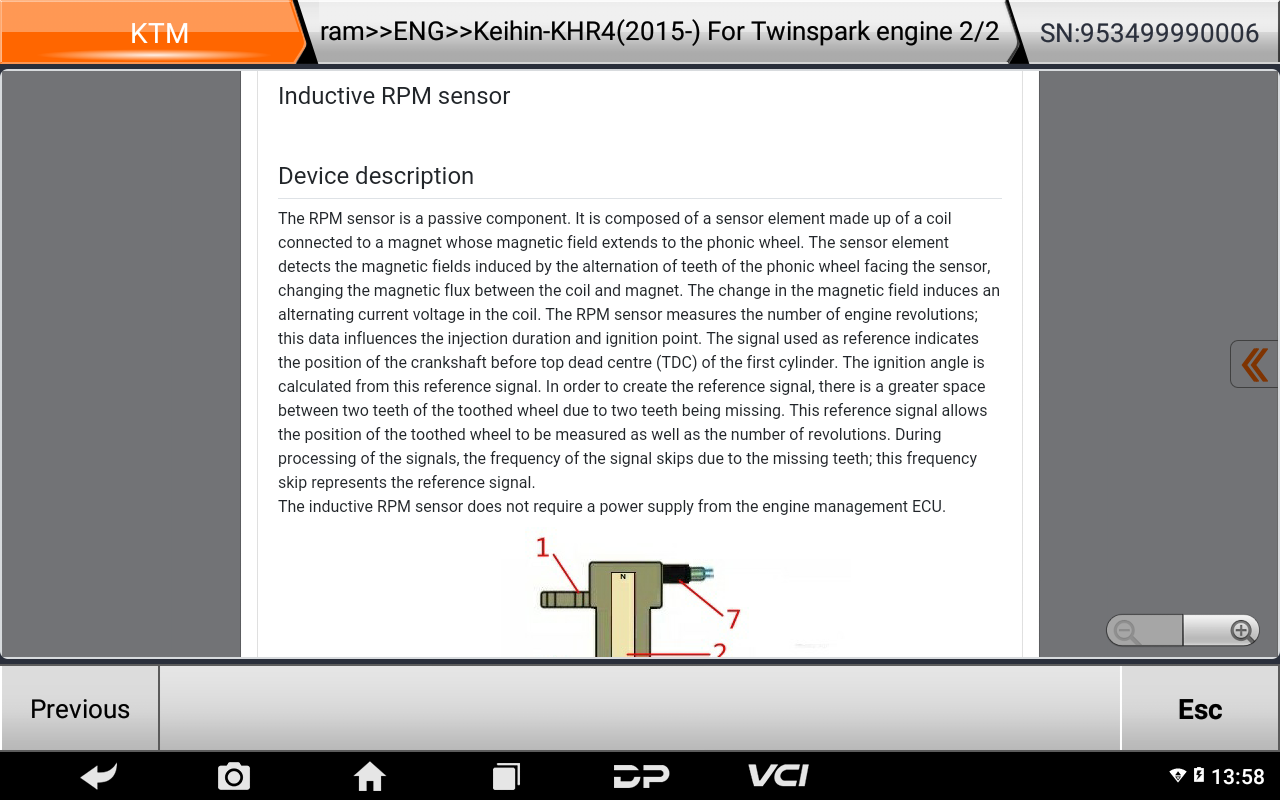

5) Components Description

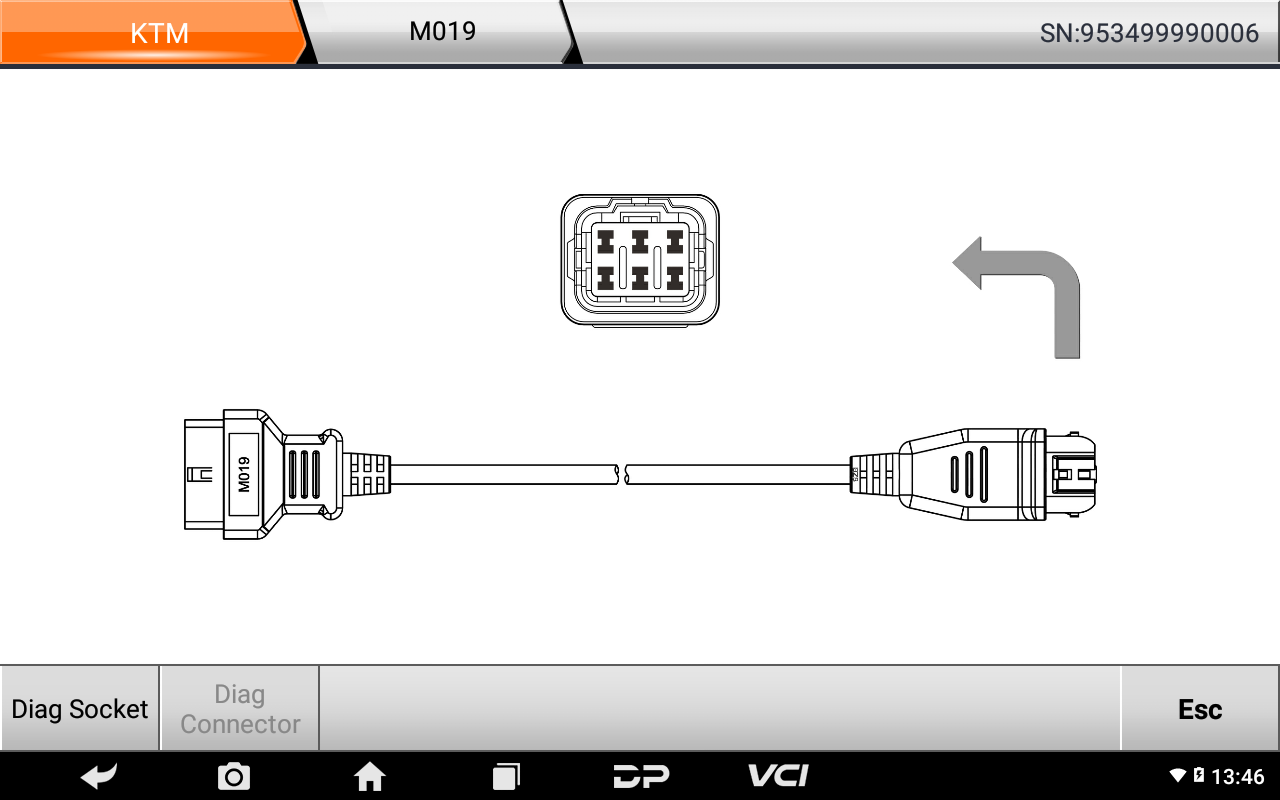

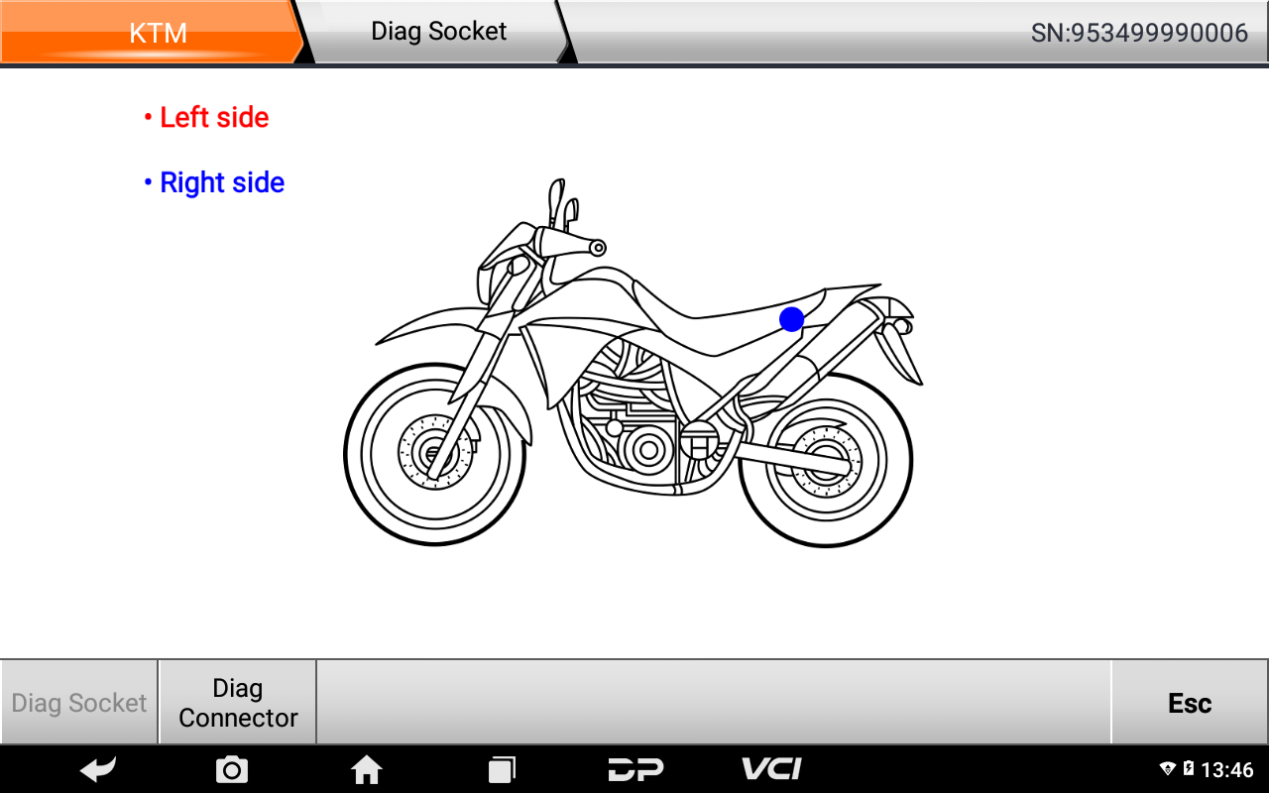

6) Diag socket/Diag Connector Location

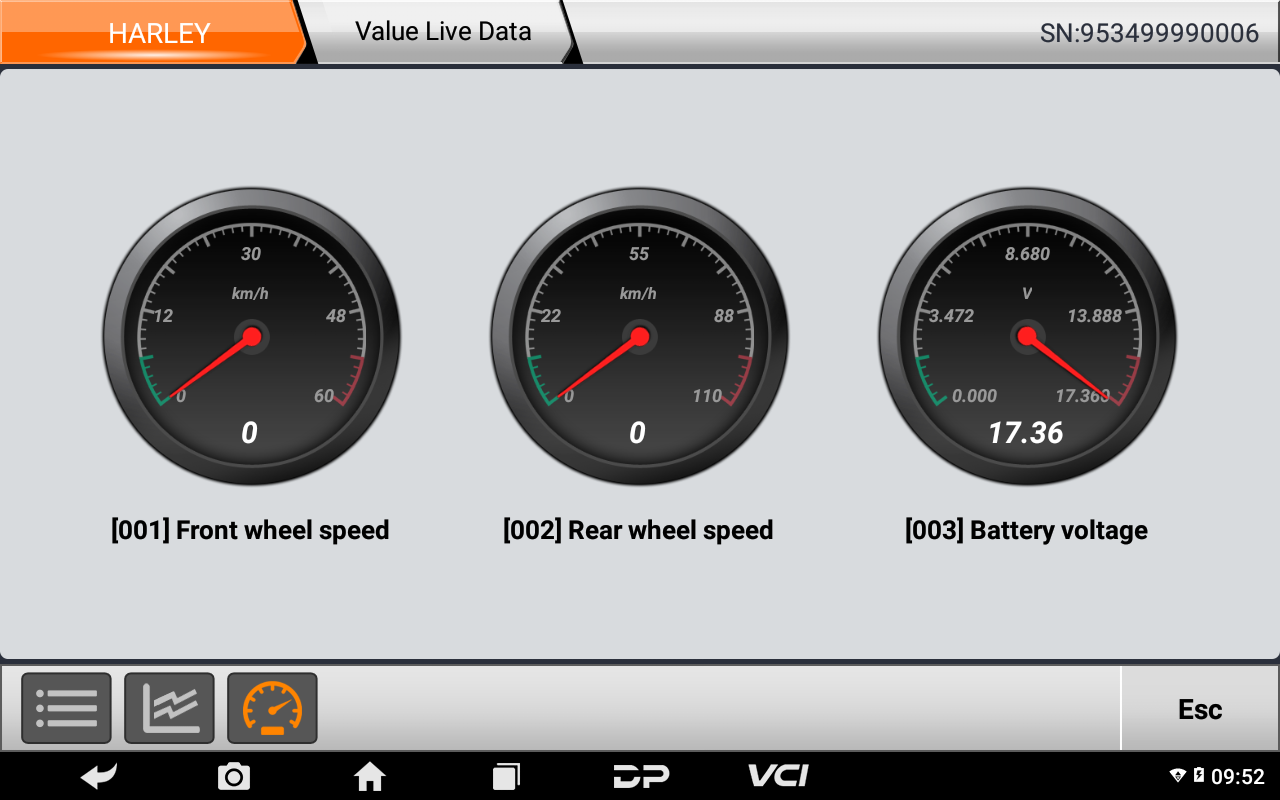

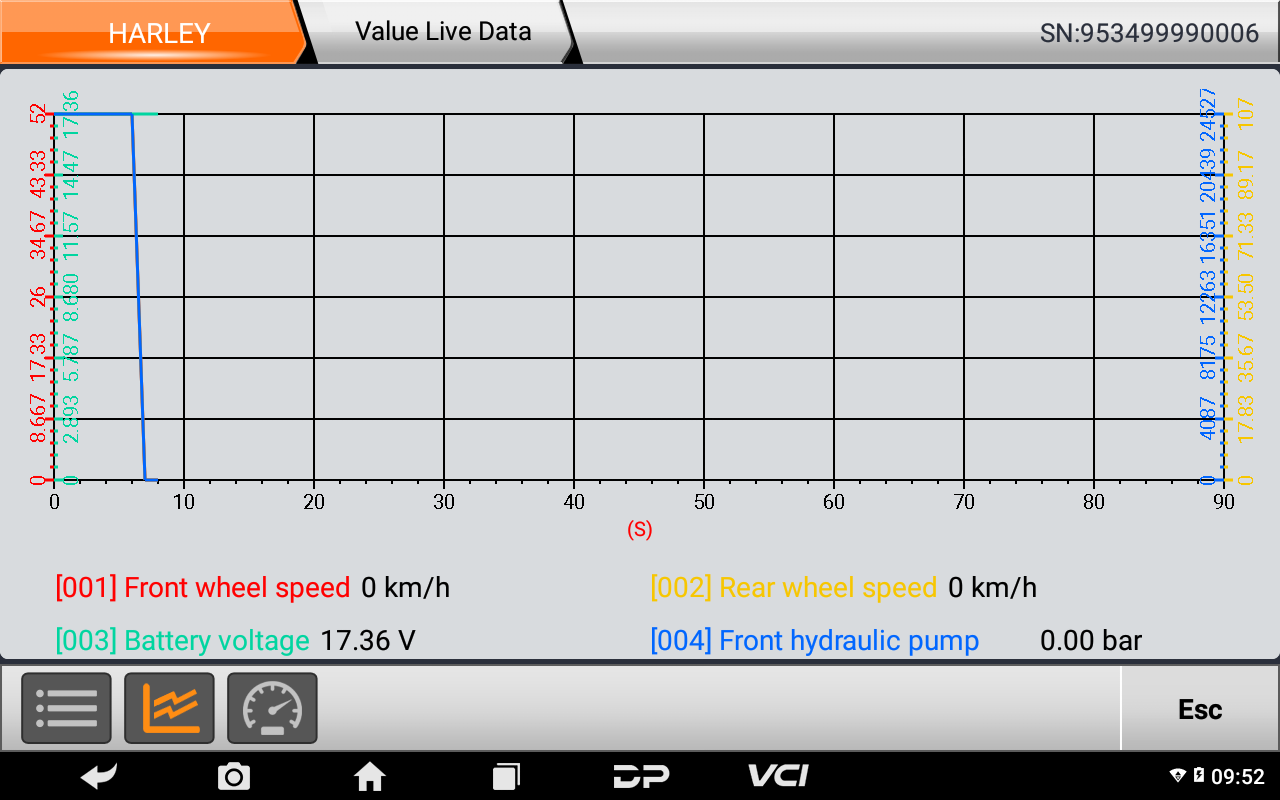

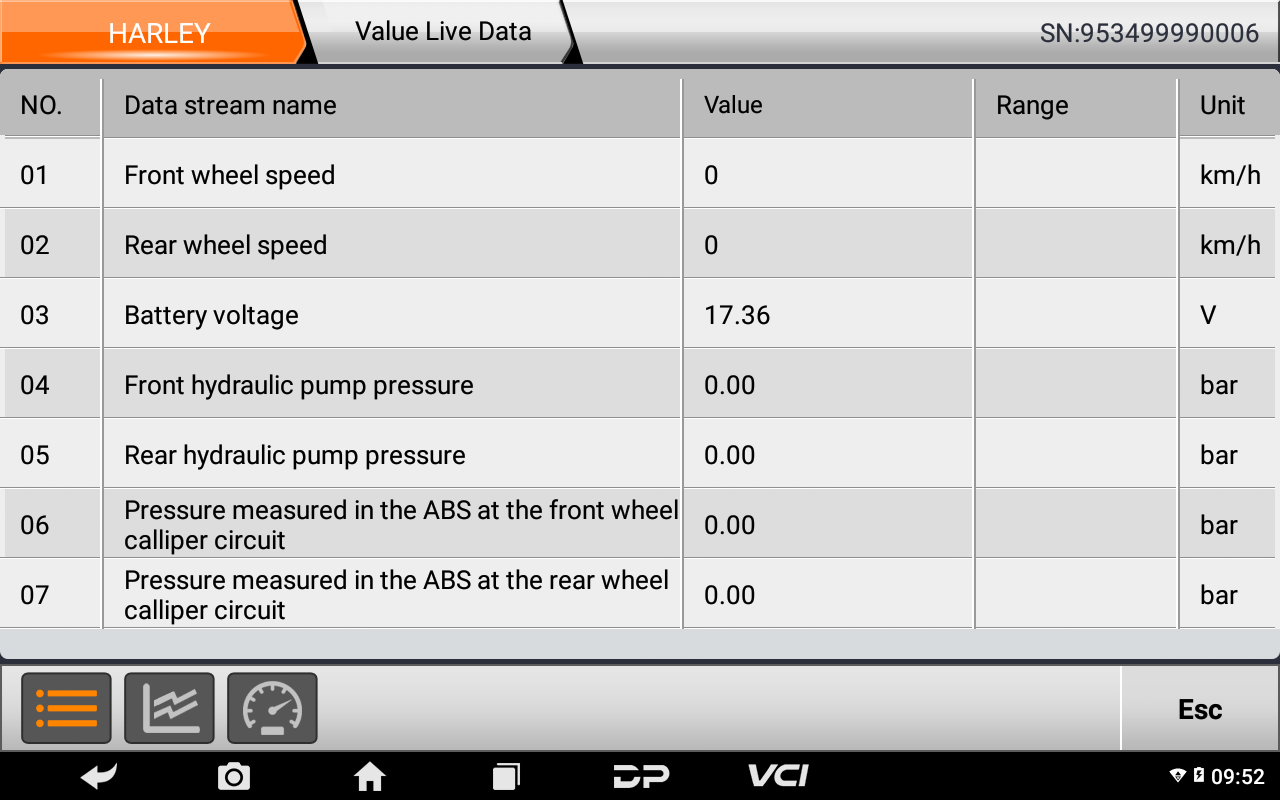

7) Data Flow Text/ Waveform Diagram/Instrument Diagram

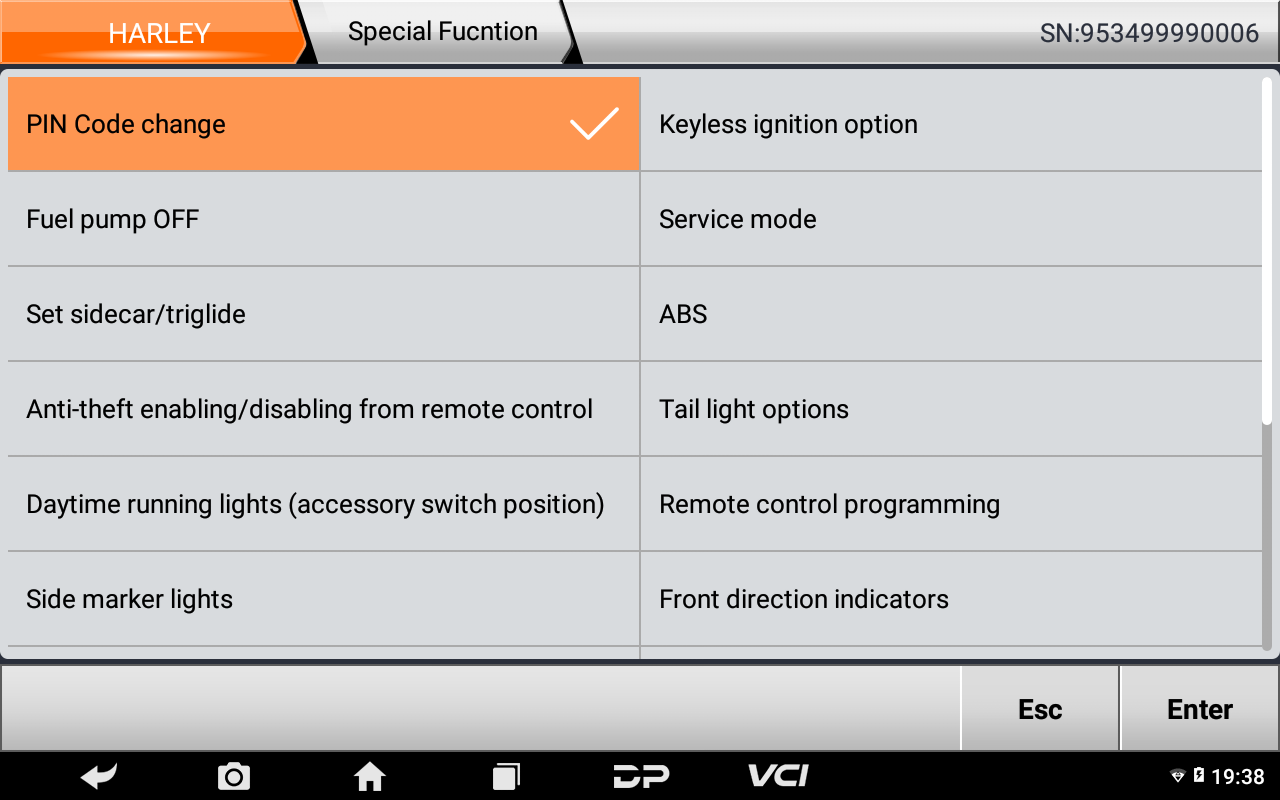

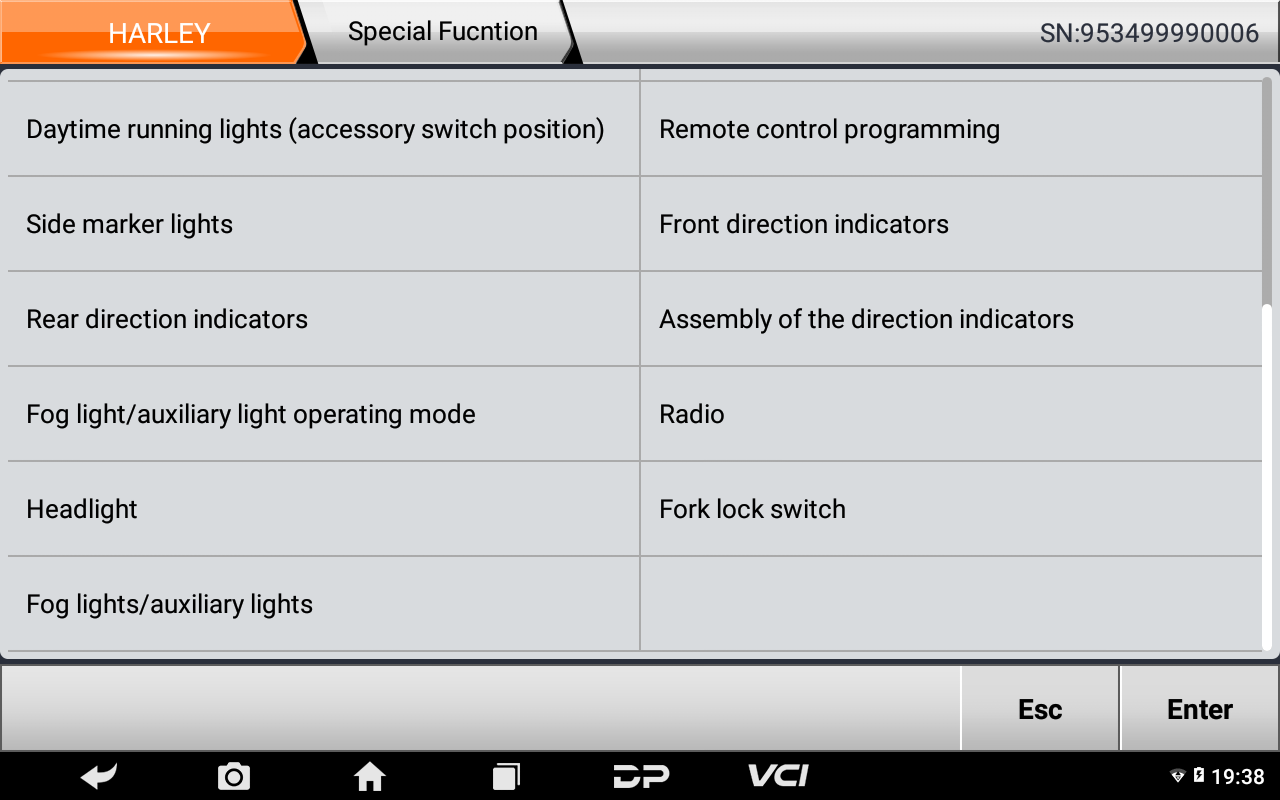

8) Special Function-Harley

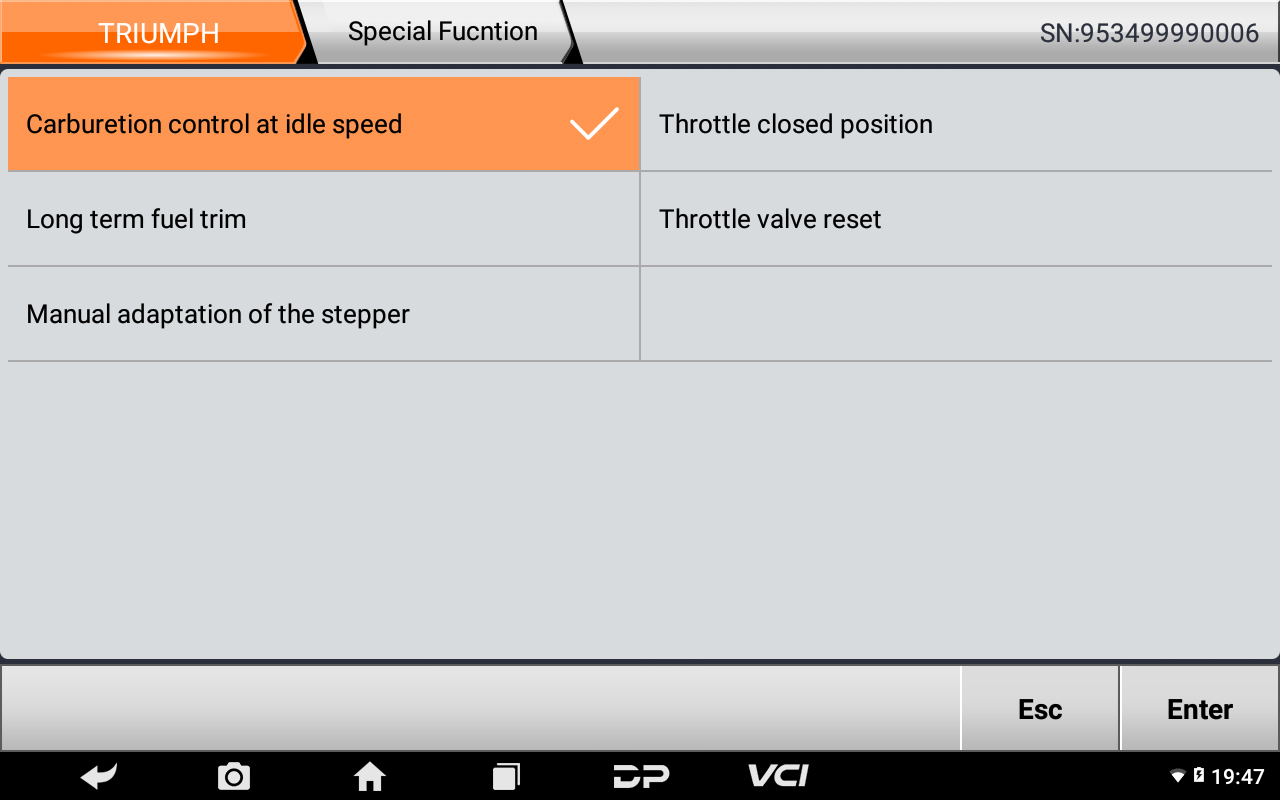

9) Special Function-Triumph

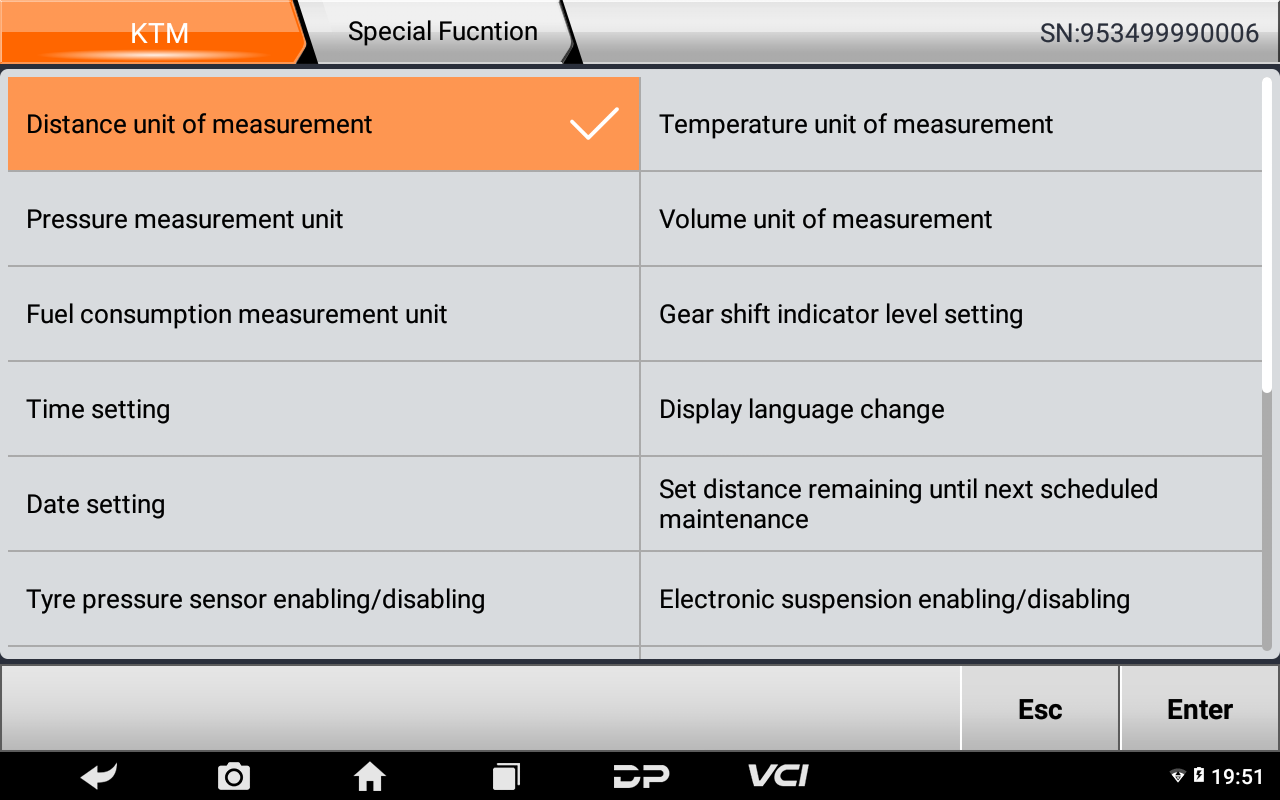

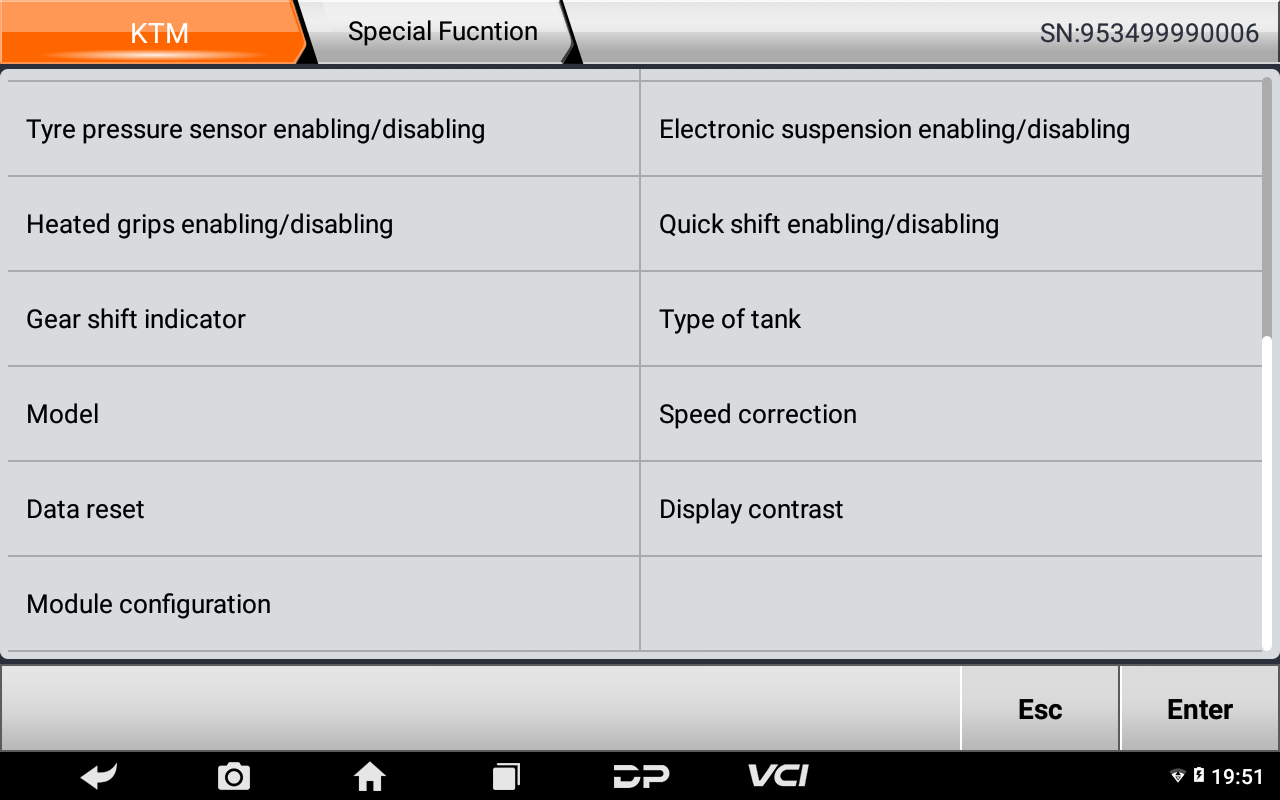

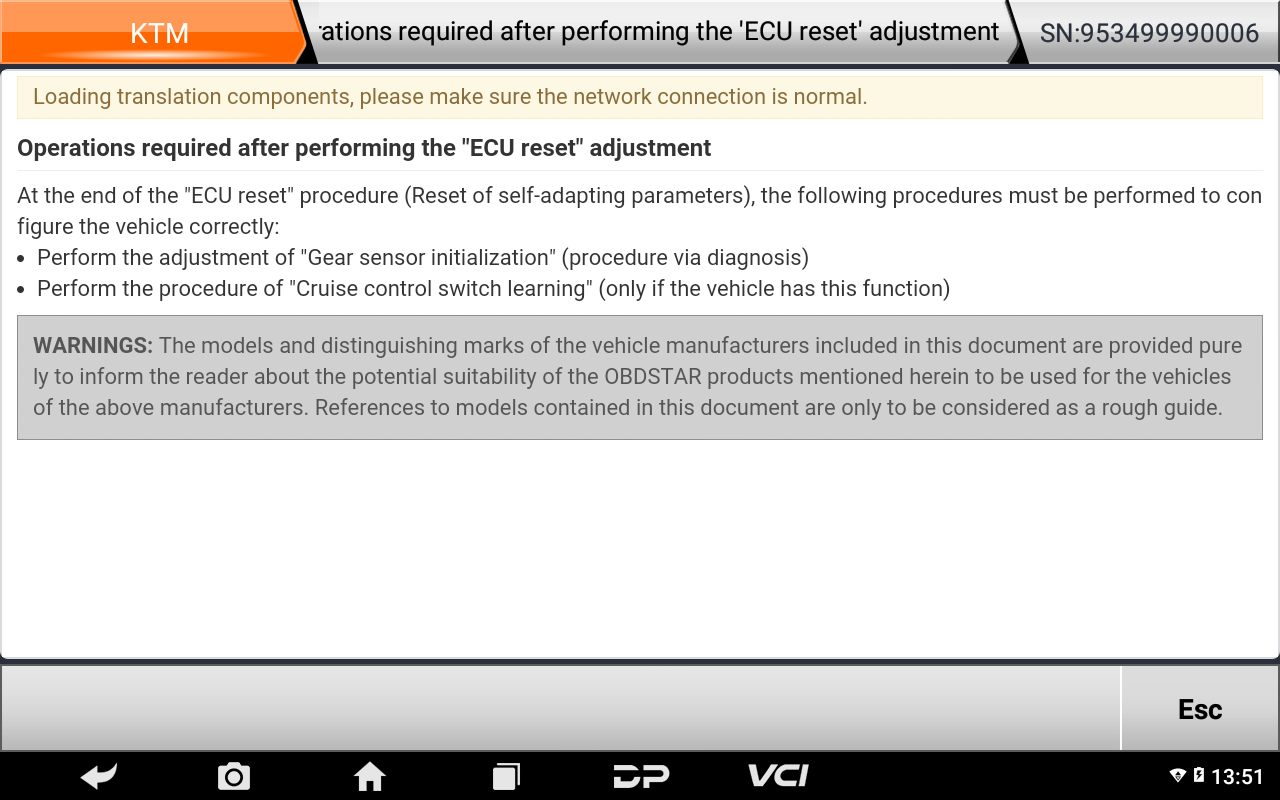

10) Special Function-KTM

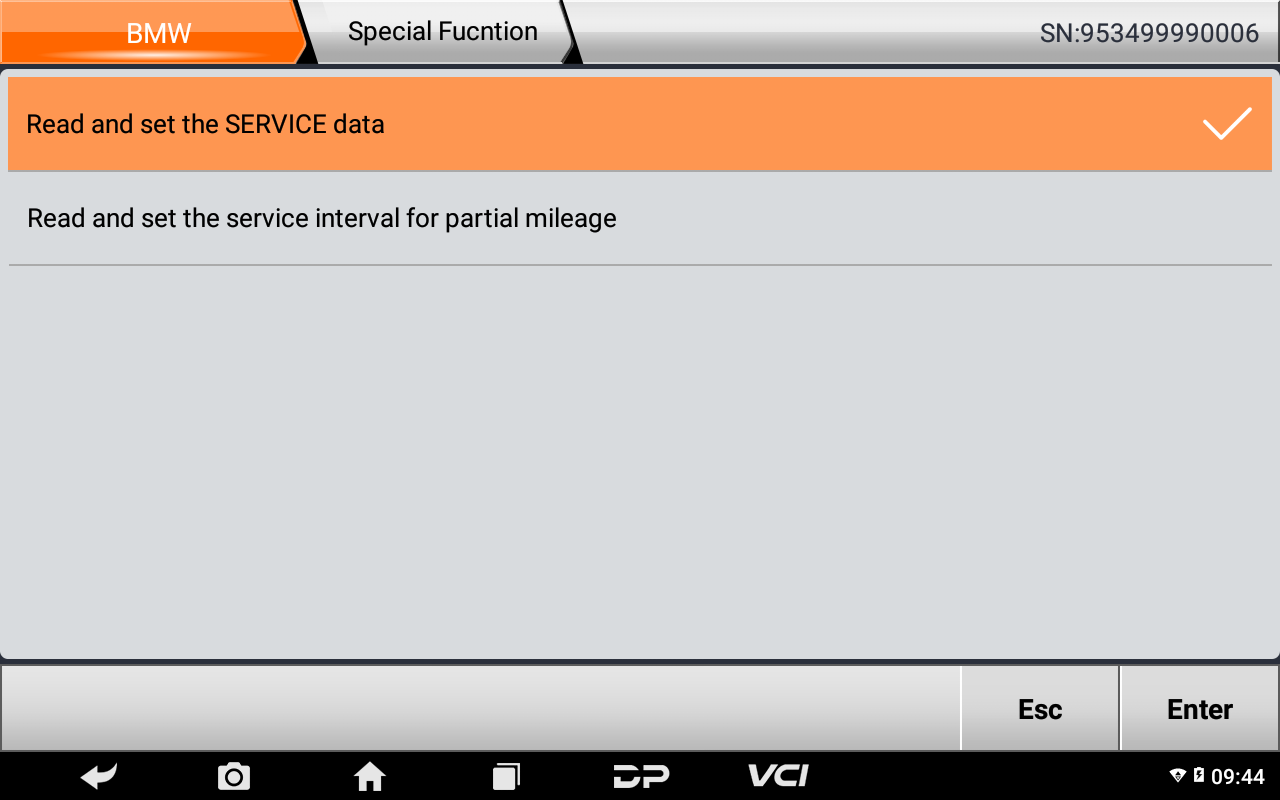

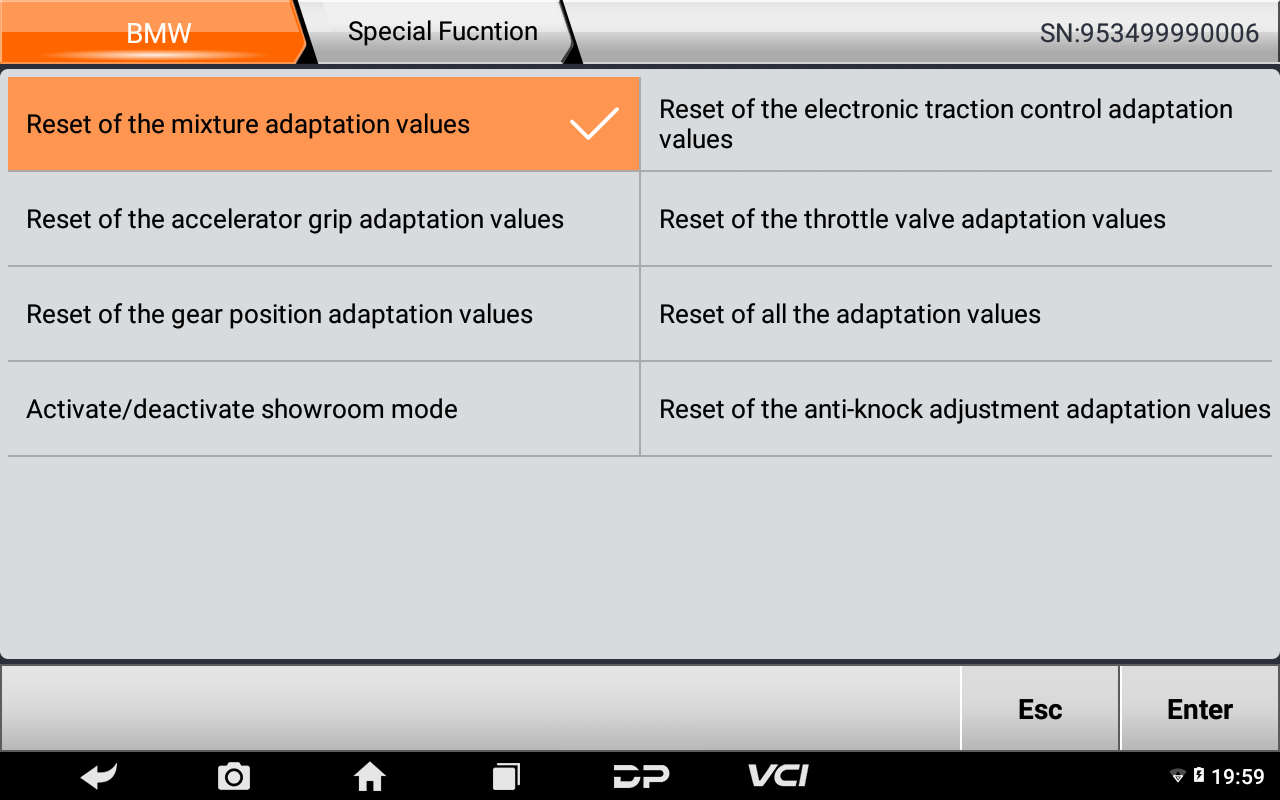

11) Special Function-BMW

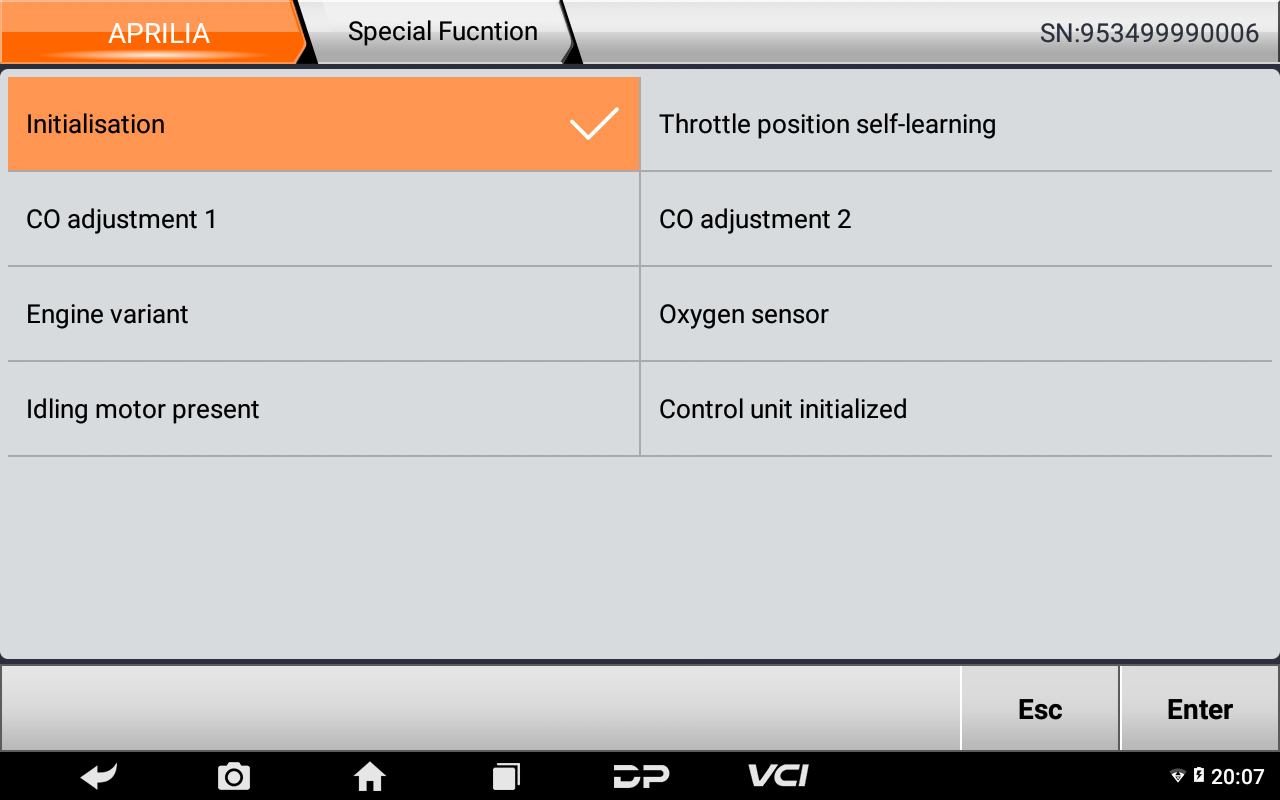

12) Special Function-Aprilia

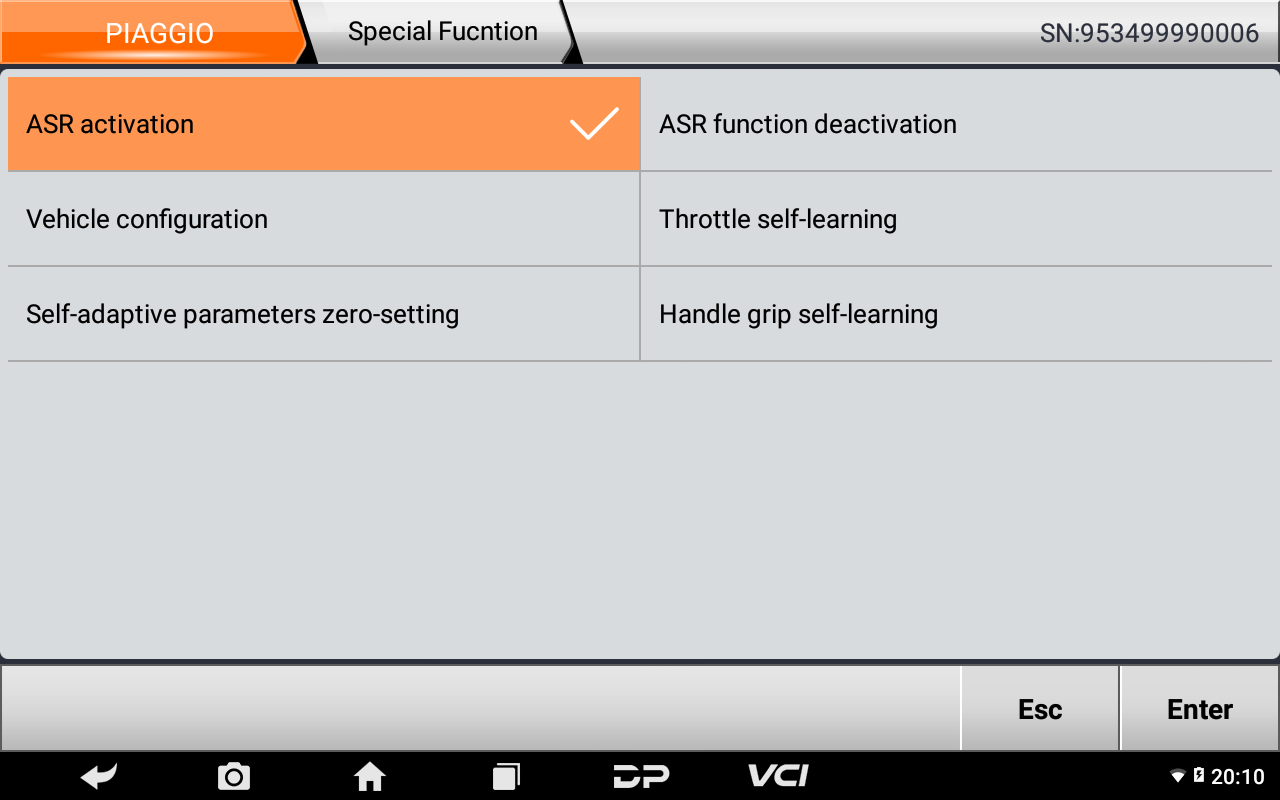

13) Special Function-Piaggio

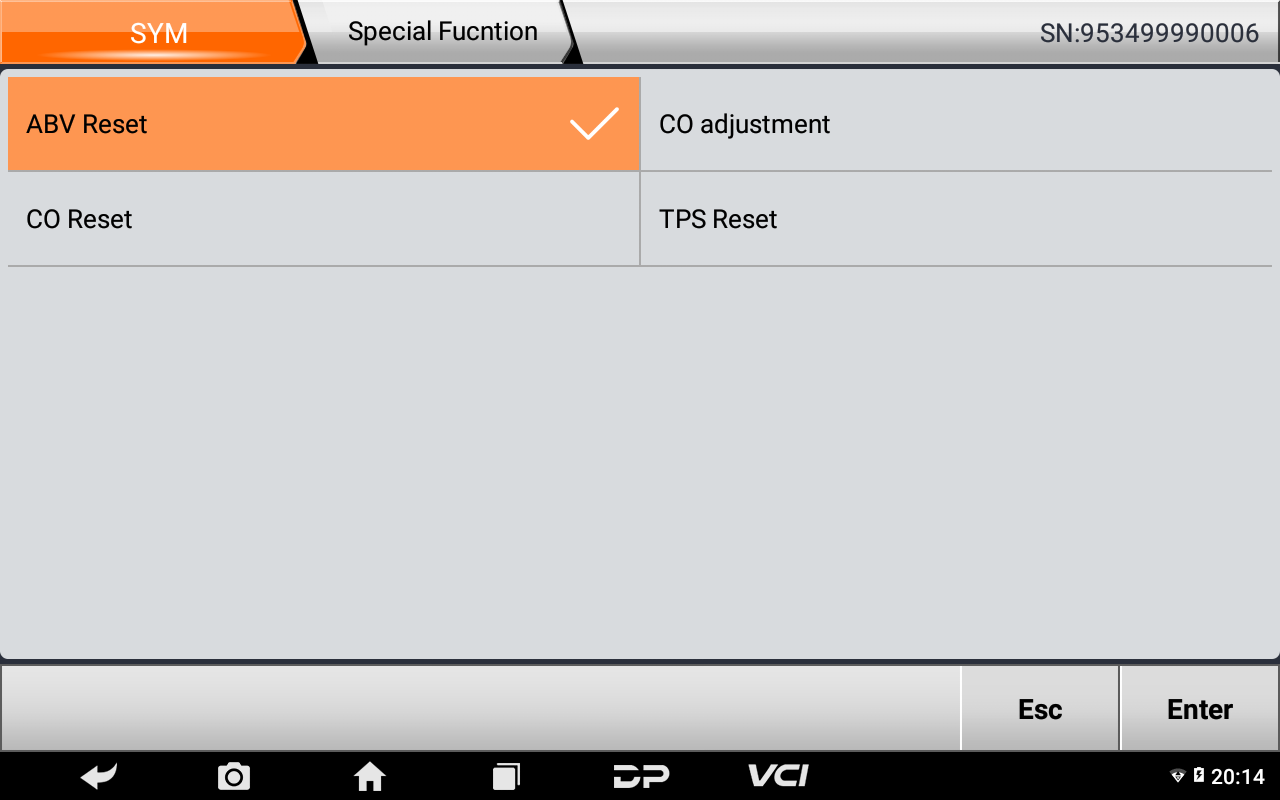

14) Special Function-SYM

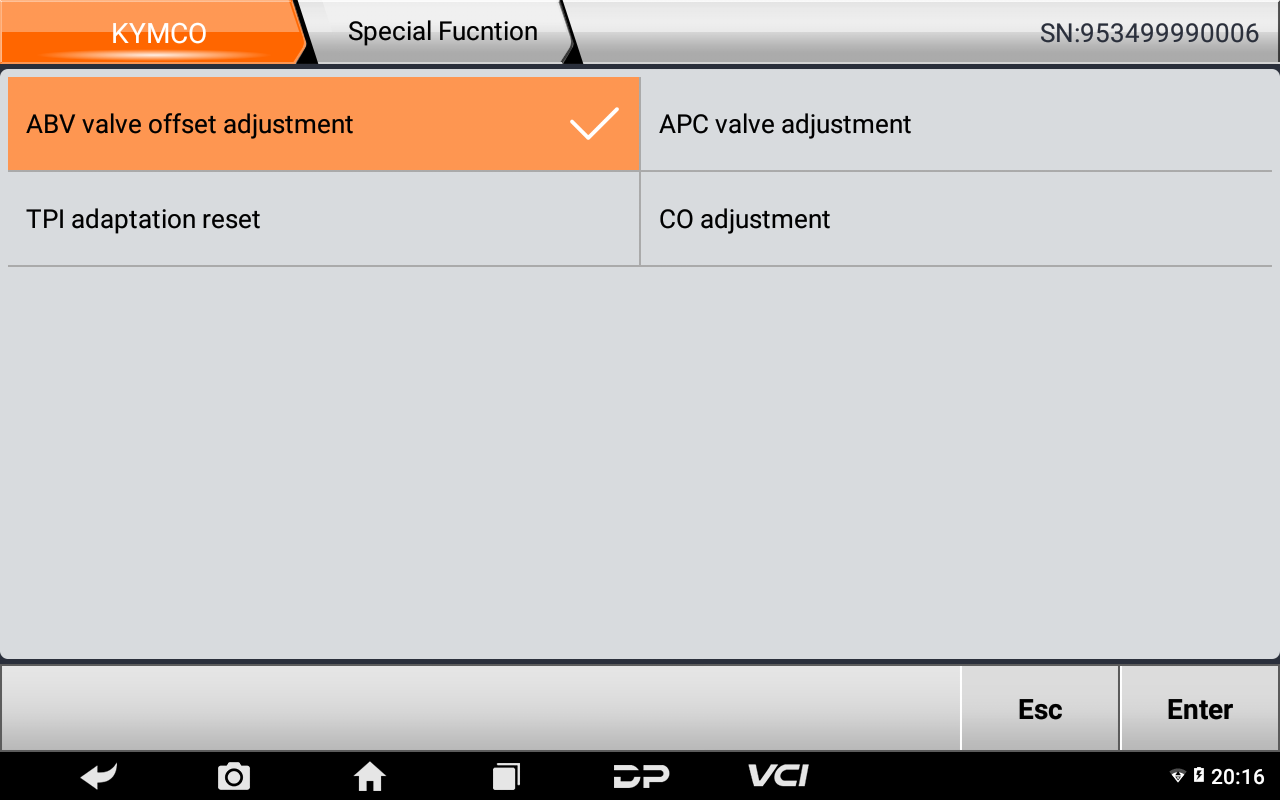

15) Special Function-KYMCO

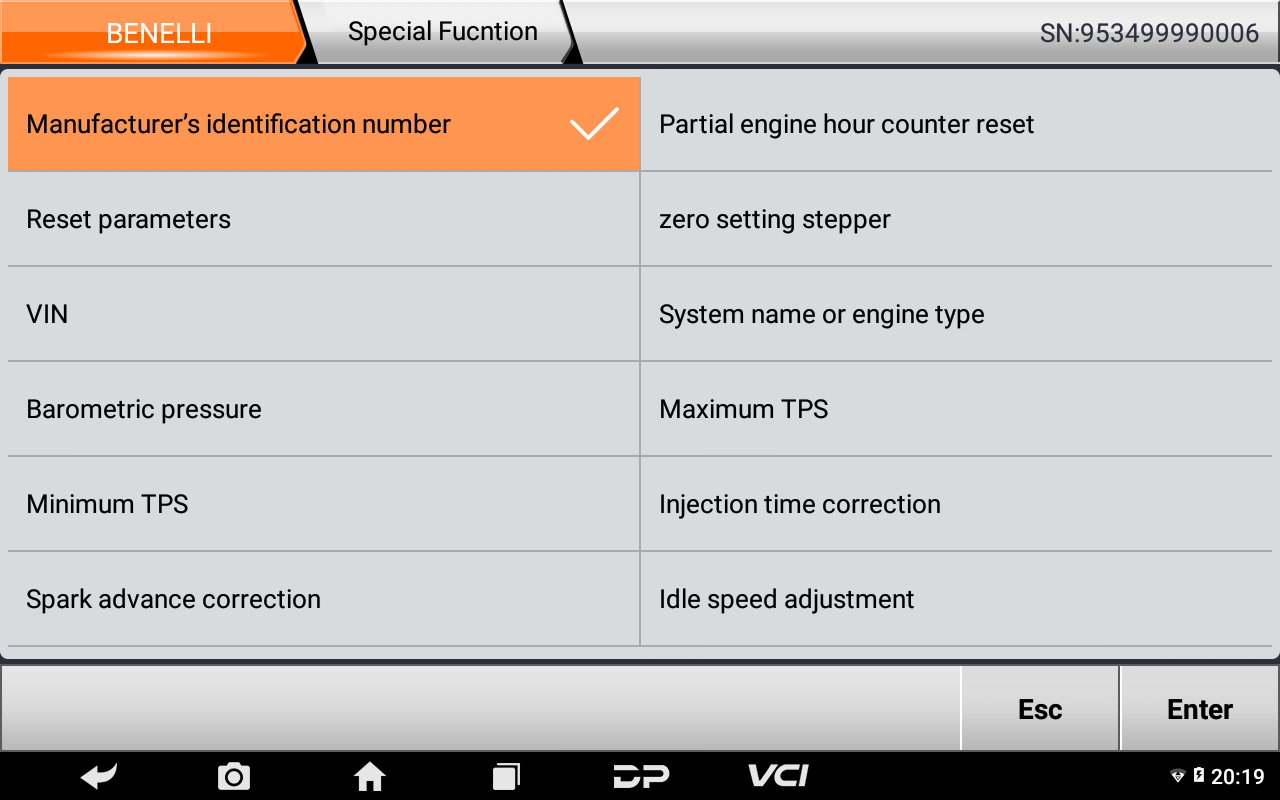

16) Special Function-BENELLI

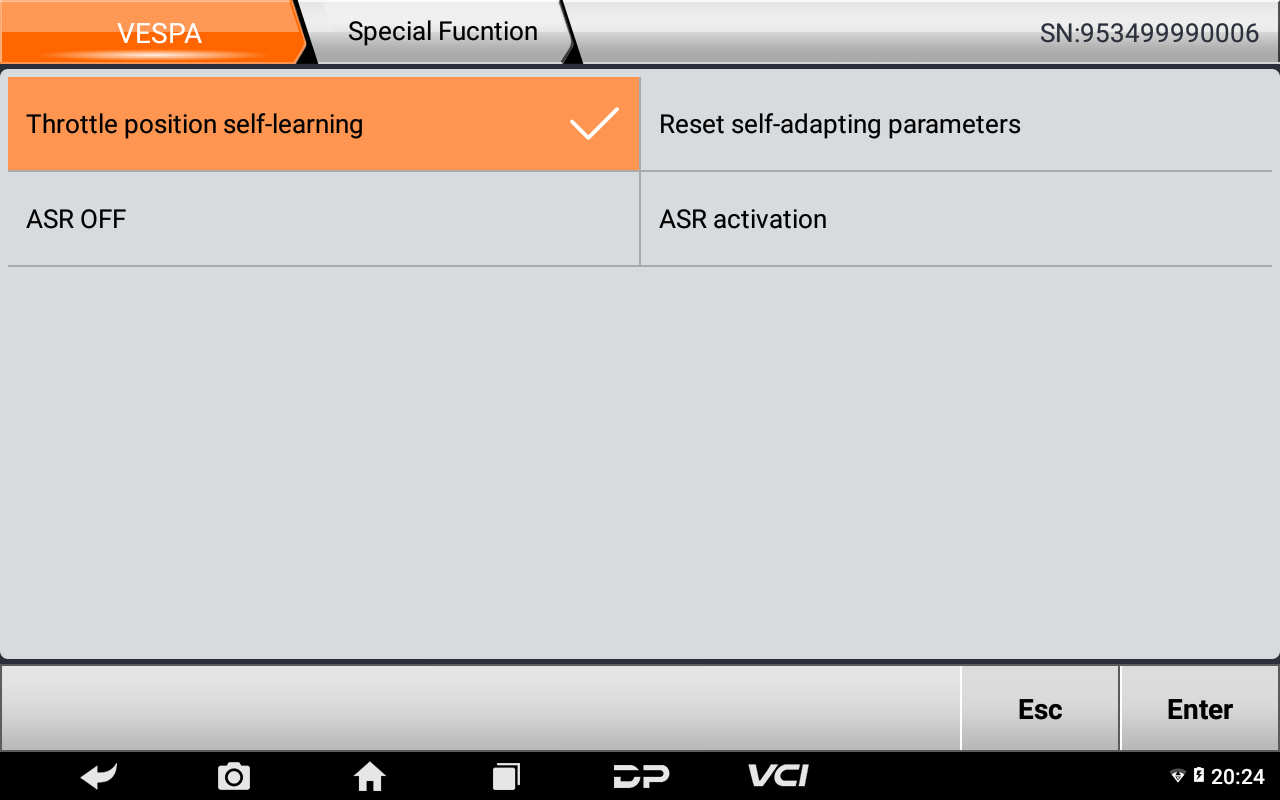

17) Special Function-VESPA
18) Special Function-SUZUKI

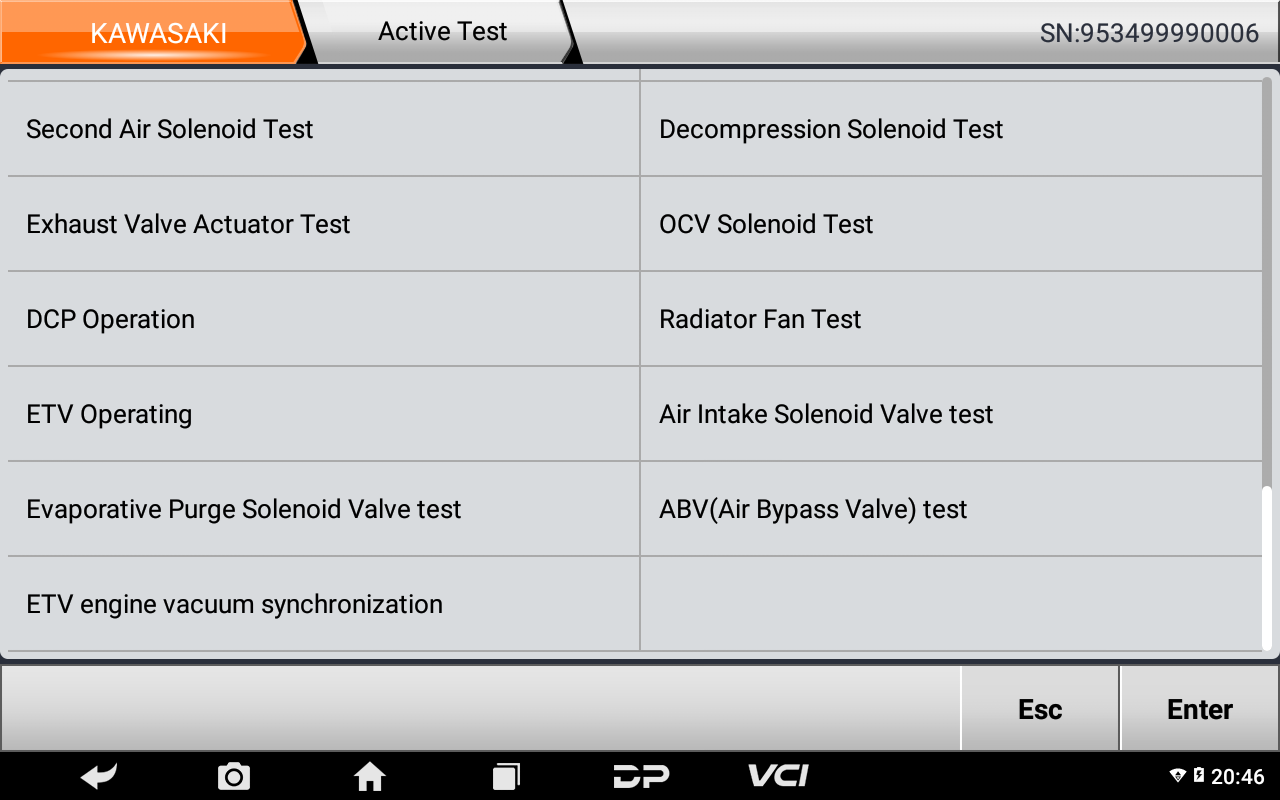

19) Special Function-KAWASAKI

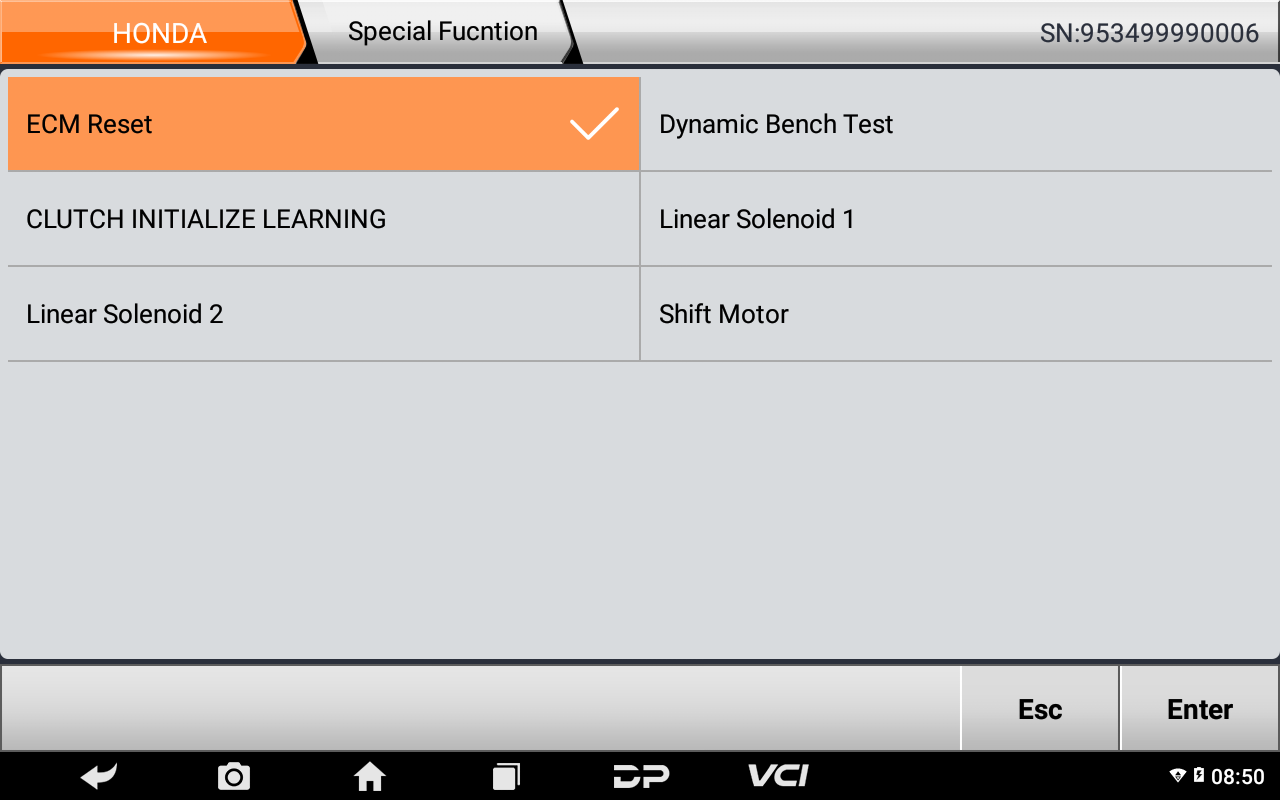

20) Special Function-HONDA

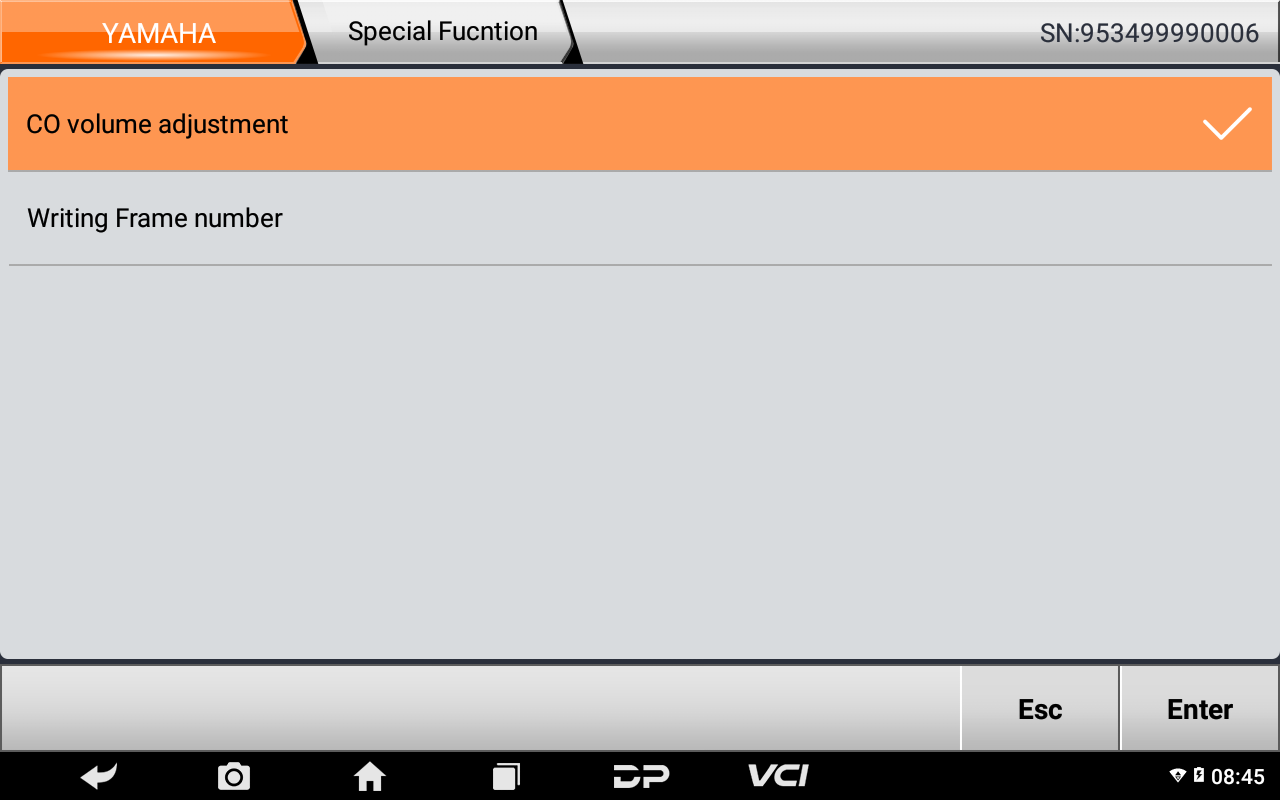

21) Special Function-YAMAHA
Specifcations:
Operation system Android 5.1.1
CPU Exynos4418 Dual Core ARM Cortex A9
Battery 3700mA, rechargeable polymer lithium battery
Extension memory card 32G Micro SD (TF) card supported
Storage capacity 32GB
LCD 8.0 inch
LCD resolution 1280*800
Touch screen capacitive touch screen
Wifi supported
Camera 5 mega rear view camera
Working temperature -10℃～55℃（14℉～131℉）
Storage temperature -20℃～70℃（-4℉～158℉）
Weight 1kg（Main Unit)
Dimension 254mm*174*mm*35mm
Product video：
http://www.obdstar.com/Products_217.html

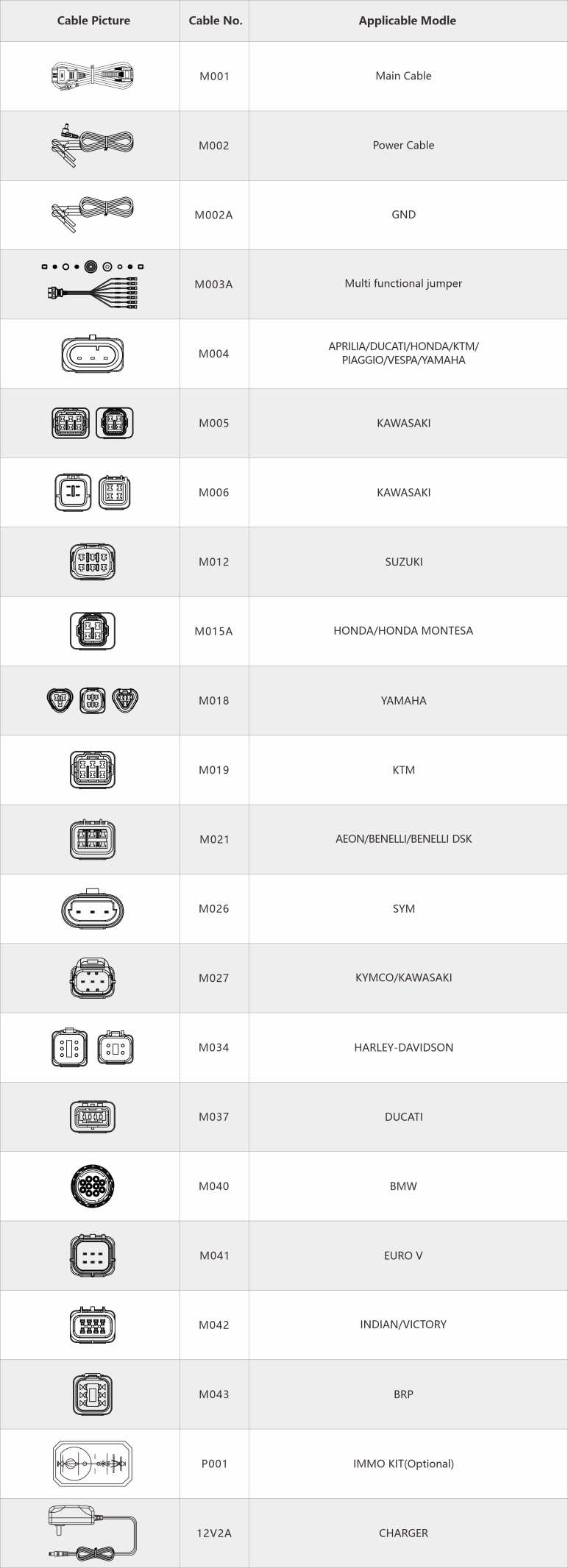

Accessories：
1pc x M001 Main Cable
1pc x M002 Power Cable
1pc xM002A GND
1pc x M003A Multi functional jumper
1pc x M004 APRILIA/ DUCATI/ HONDA/ KTM/ PIAGGIO/ VESPA/ YAMAHA
1pc x M005 KAWASAKI
1pc x M006 KAWASAKI
1pc x M012 SUZUKI
1pc x M015A HONDA/HONDA MONTESA
1pc x M018 YAMAHA
1pc x M019 KTM
1pc x M021 AEON/BENELLI/BENELLI DSK
1pc x M026 SYM
1pc x M027 KYMCO/KAWASAKI
1pc x M034 HARLEY-DAVIDSON
1pc x M037 DUCATI
1pc x M040 BMW
1pc x M041 EURO V
1pc x M042 INDIAN/VICTORY
1pc x M043 BRP
1pc x P001 IMMO KIT(Optional)
1pc x 12V2A CHARGER
|
MS80 FUNCTION
|
|
Immobilizer
|
Europe
|
TRIUMPH
|
√
|
|
GILERA
|
√
|
|
PEUGEOT
|
√
|
|
PIAAGIO
|
√
|
|
DUCATI
|
√
|
|
VESPA
|
√
|
|
America
|
HARLEY
|
√
|
|
Motorcycle diagnosis
|
Asia
|
HONDA
|
√
|
|
KAWASAKI
|
√
|
|
KYMCO
|
√
|
|
SUZUKI
|
√
|
|
SYM
|
√
|
|
YAMAHA
|
√
|
|
MONTESA
|
√
|
|
PGO
|
√
|
|
HARTFORD
|
√
|
|
AEON
|
√
|
|
BENELLIDSK
|
√
|
|
Europe
|
APRILIA
|
√
|
|
BENELLI
|
√
|
|
BMW
|
√
|
|
DUCATI
|
√
|
|
KTM
|
√
|
|
PIAGGIO
|
√
|
|
TRIUMPH
|
√
|
|
VESPA
|
√
|
|
MALAGUTI
|
√
|
|
GASGAS
|
√
|
|
GILERA
|
√
|
|
GUZZI
|
√
|
|
AGUSTA
|
√
|
|
DERBI
|
√
|
|
Ameria
|
HARLEY
|
√
|
|
INDIAN
|
√
|
|
VICTORY
|
√
|
|
BRP
|
√
|
|
OBD
|
OBD
|
√
|
|
Motorboat
|
Asia
|
HONDABOAT
|
√
|
