Launch X-Prog 3 Advanced Immobilizer & Key Programmer Works with X431 V, X-431 PRO, X431 V+, X-431 PRO 3,X431 PAD V, PAD VII
X-PROG
3 advanced immobilizer & key programmer is a powerful chip reading
device that can read/write keys to the vehicle. Compatible with X-431
series diagnostic scanners, X-PROG 3 enables Anti-theft type
identification, Remote control matching, Key chip reading &
matching, anti-theft password reading and anti-theft component
replacement.
To check detail X-PROG3 Immobilizer key
programming list, check list on the official website:
https://qcar.x431.com/newqcar/carDes?lan=EN&swId=RESETPROG&page=1&type=3&serialName=Immo
Program&area=RESET
Features:
1. Compatible
with X-431 series diagnostic scanners, X-PROG 3 enables reading/writing
EEPROM, on-board MCU and BMW CAS4+/FEM chips, Mercedes-Benz infrared
keys, generating special keys, reading BMW engine INS code.
2. Supported brands: VW, AUDI, SKODA, SEAT, BMW, MERCEDES-BENZ, TOYOTA, etc. More models continue to be updated.
3. Supported systems: Automatic Transmission, Instrument System, CAS, Body System, Lock System, etc.
4. Compatible with: X-431 PRO GT, X-431 PRO V4.0, X-431 PRO 3 V4.0, X-431 PRO 5, X-431 PAD III V2.0, X-431 PAD V, X-431 PAD VII
5. Reads & writes most Engine/Gearbox ECUs without disassembling the shell
Advantages
1. Supports VW/AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).
2. Supports VW/AUDI MQB platform gearbox ECU replacement or cloning.
3. Supports ECU replacement for the fifth-generation of Audi (0AW/0B5) gearbox.
4. Supports reading, writing & cloning the ECU for the fourth-generation of VW UDS engine.
5. Supports BMW E chassis 8HP gearbox ECU reprogramming to empty.
6. Works with reprogramming device to backup/restore programming data (For Bosch/Siemens engine ECU).
Core Functions
1. Integrated the functions of key matching/copy, anti-theft IC reading & writing, and ECU reading & writing, etc.
2. Supports common ECU/MCU/EEPROM major manufacturers, with over 1200 product models, and constantly updating.
3.
Supports ECU replacement for all lost without disassembly for VW/AUDI
non-35XX instrument (it can be read directly through independent harness
without removing the IC).
4. Supports ECU replacement for the fourth-generation of VW/AUDI engine;
5. Supports ECU replacement for the fifth-generation of VW/AUDI Bosch and Siemens engines.
6. Supports the all lost and replacement for the fourth generation of AUDI EZS, comfortable ECU, and KESSY IC.
7. Supports the BMW F and G chassis 8HP gearbox ECU reprogramming to empty.
8. Supports the BMW CAS4/CAS4+ module replacement.
9. Supports the ECU cloning and replacement for BMW Siemens engines.
10. Erase the password for Mercedes-Benz engine and gearbox within 3S.
11. Add the function of calculating the password for the Mercedes-Benz key within 1 minute.

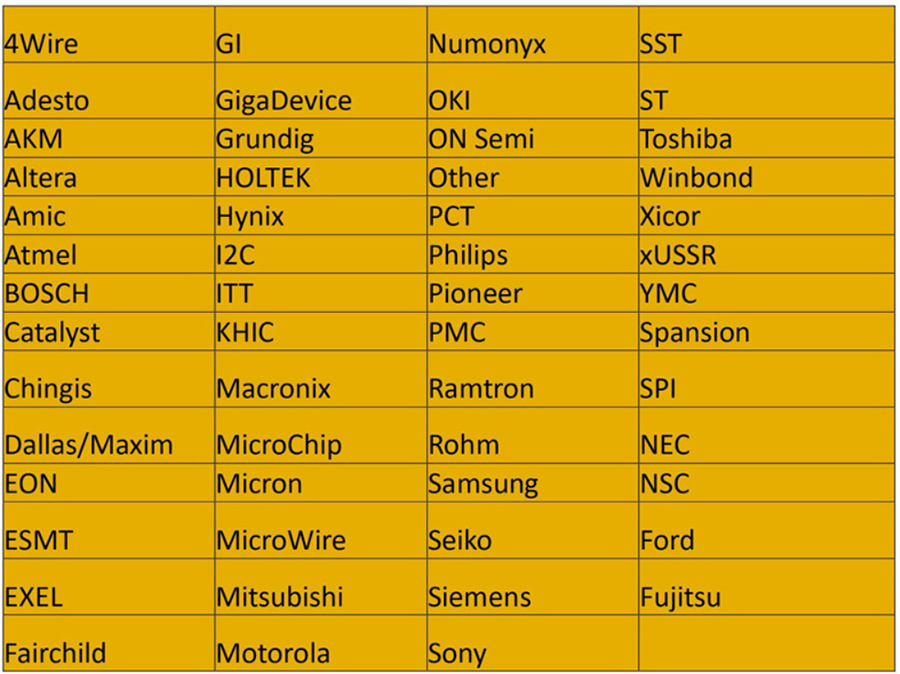

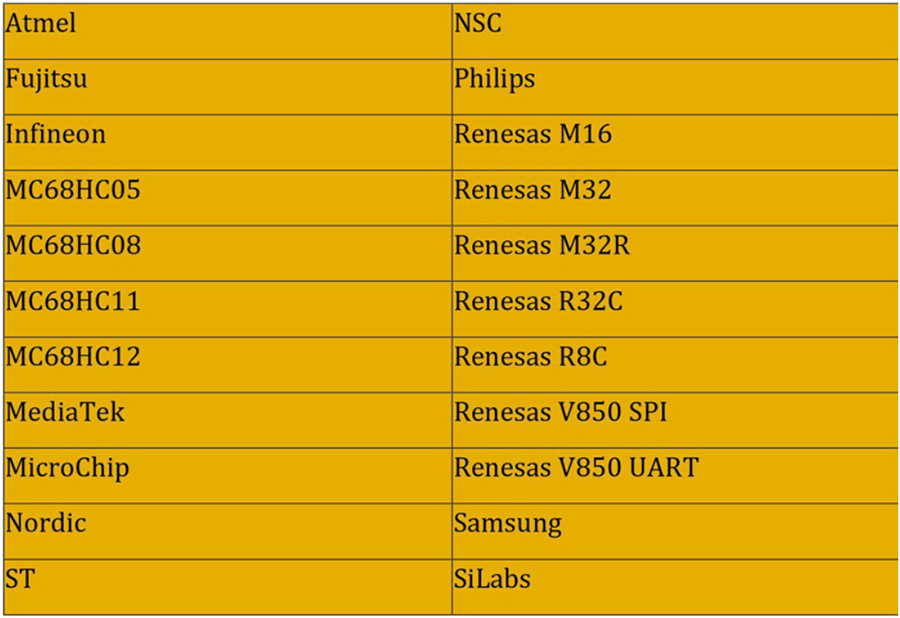

Supported Chip Brands:
It
supports common mainstream ECU MCU manufacturers, with more than 1,000
product models, and they are continuously being updated.
Supported EEPROM Brands:
It supports common mainstream EEPROM manufacturers, with nearly 1,000 product models, and they are continuously being updated.

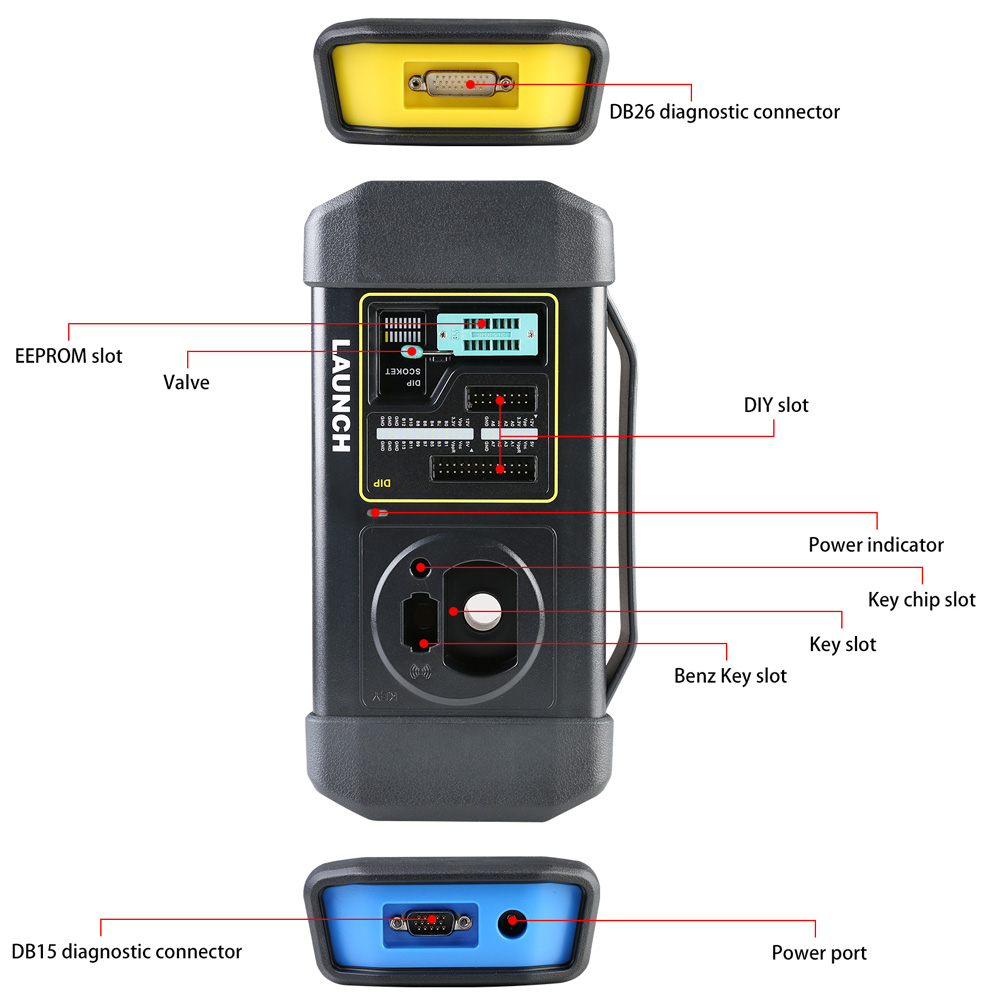

XPROG3 Operation Connection:
Connection method 1: Directly connect to OBD16 for key matching, data reading and writing, etc
Connection
method 2: Place the anti-theft EEPROM or MCU chip in the chip burning
socket, and then insert the chip burning socket into the slot of the
immobilizer programmer locker and lock it to realize the data
interaction between the IC anti-theft chip and the diagnostic host
Connection
method 3: After removing the ECU from the car, connect the anti-theft
ECU pin to the DIY slot of the immobilizer programmer through the cable
to realize the data interaction between the anti-theft ECU and the
diagnostic host.

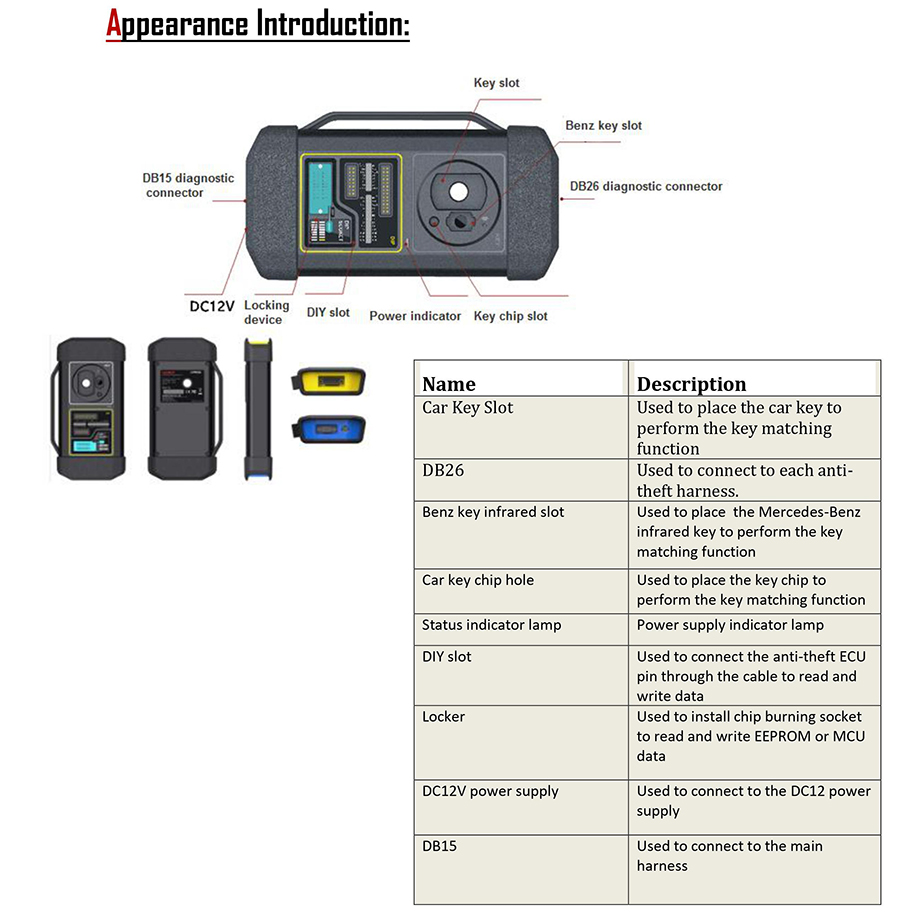

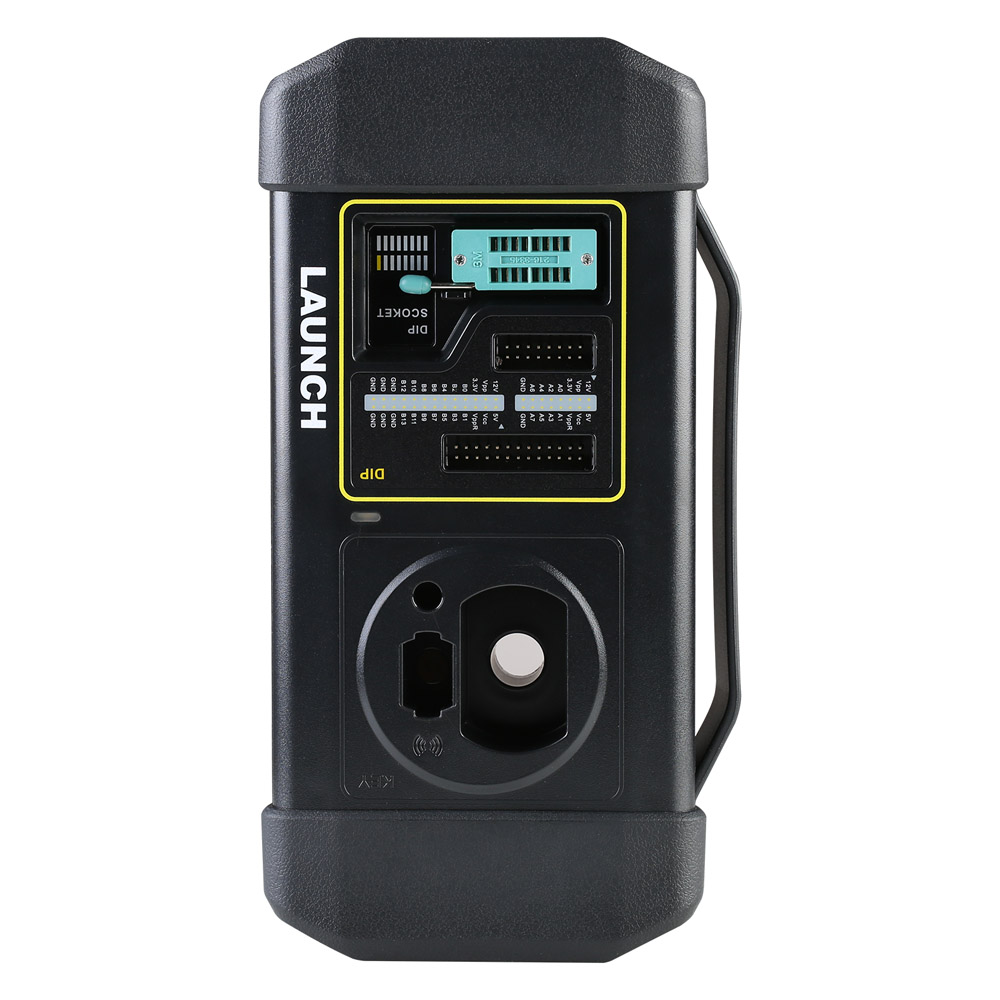

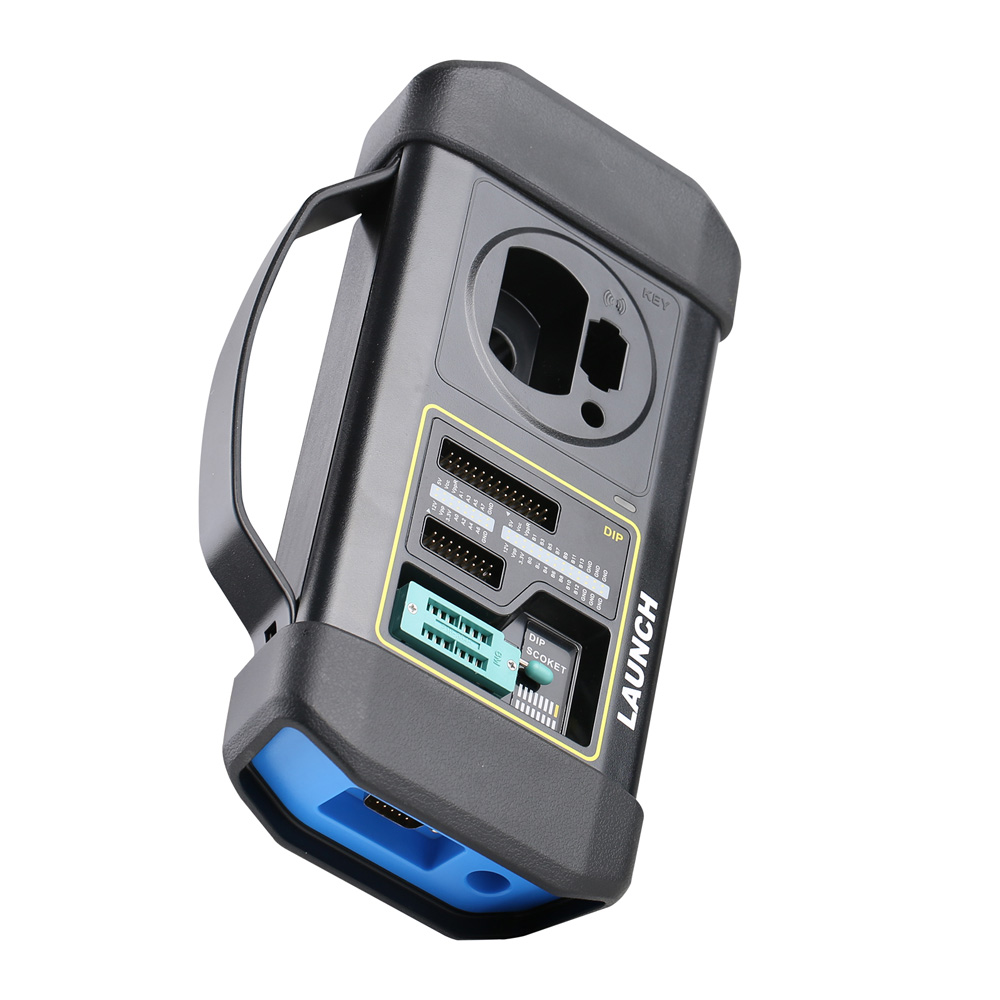

Display:

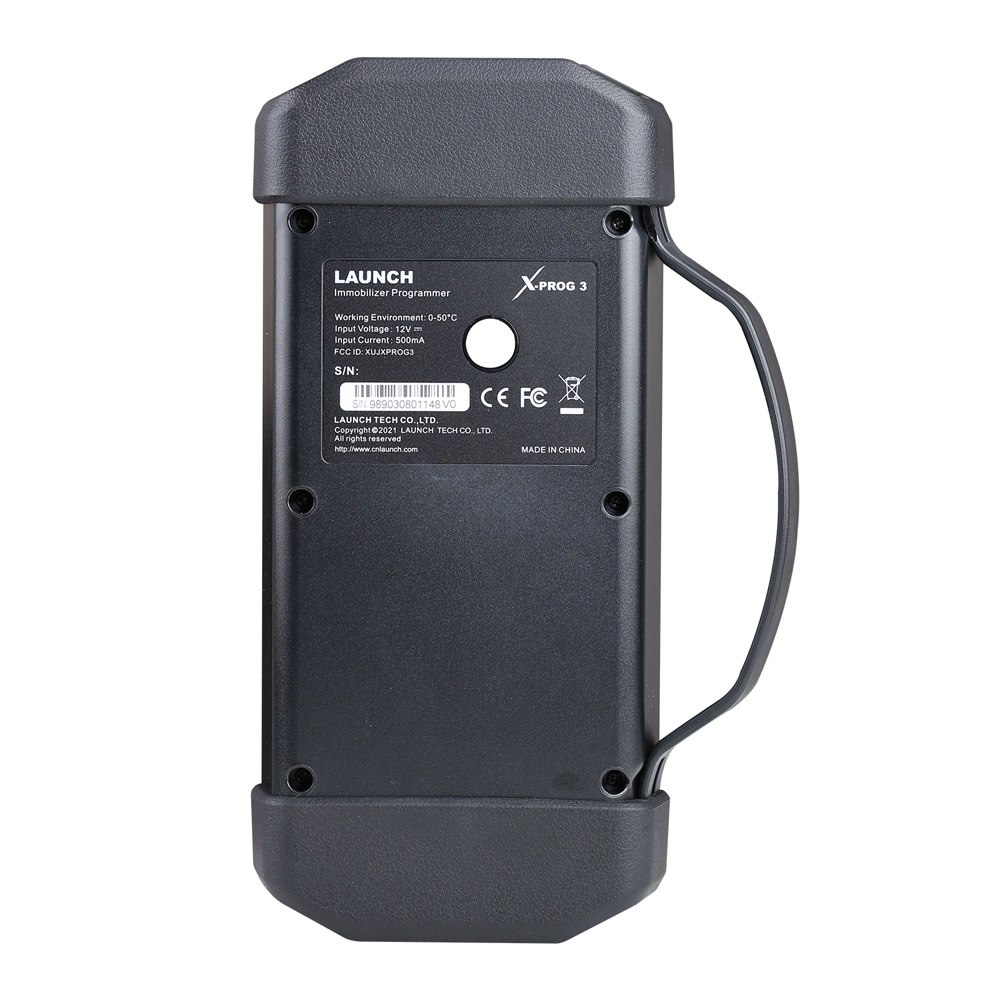

Specification
Interface DB26, DB15
Input Power DC12V
Working CurrentMax 500mA
Power Consumption 5W
Storage Temperature -20℃~70℃
Working Temperature 0℃~50℃

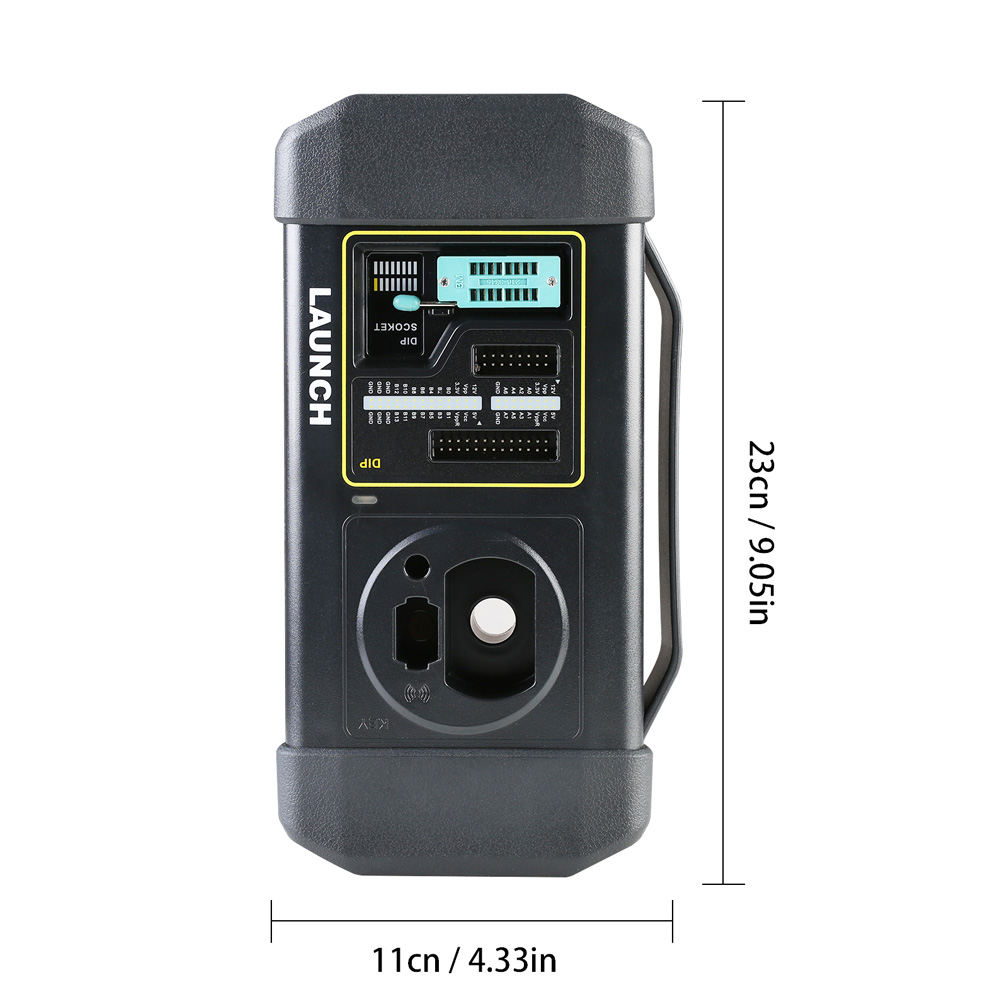

Size 228*120 mm

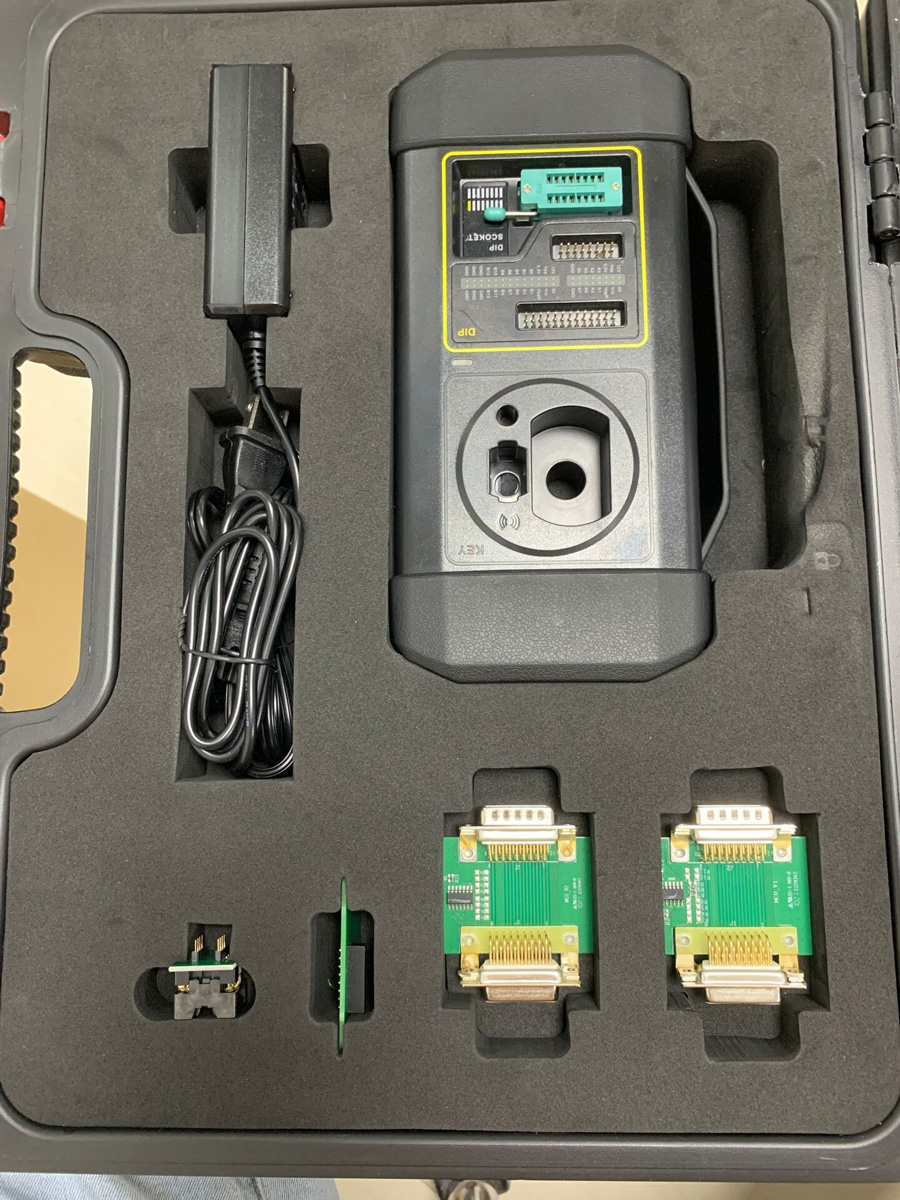

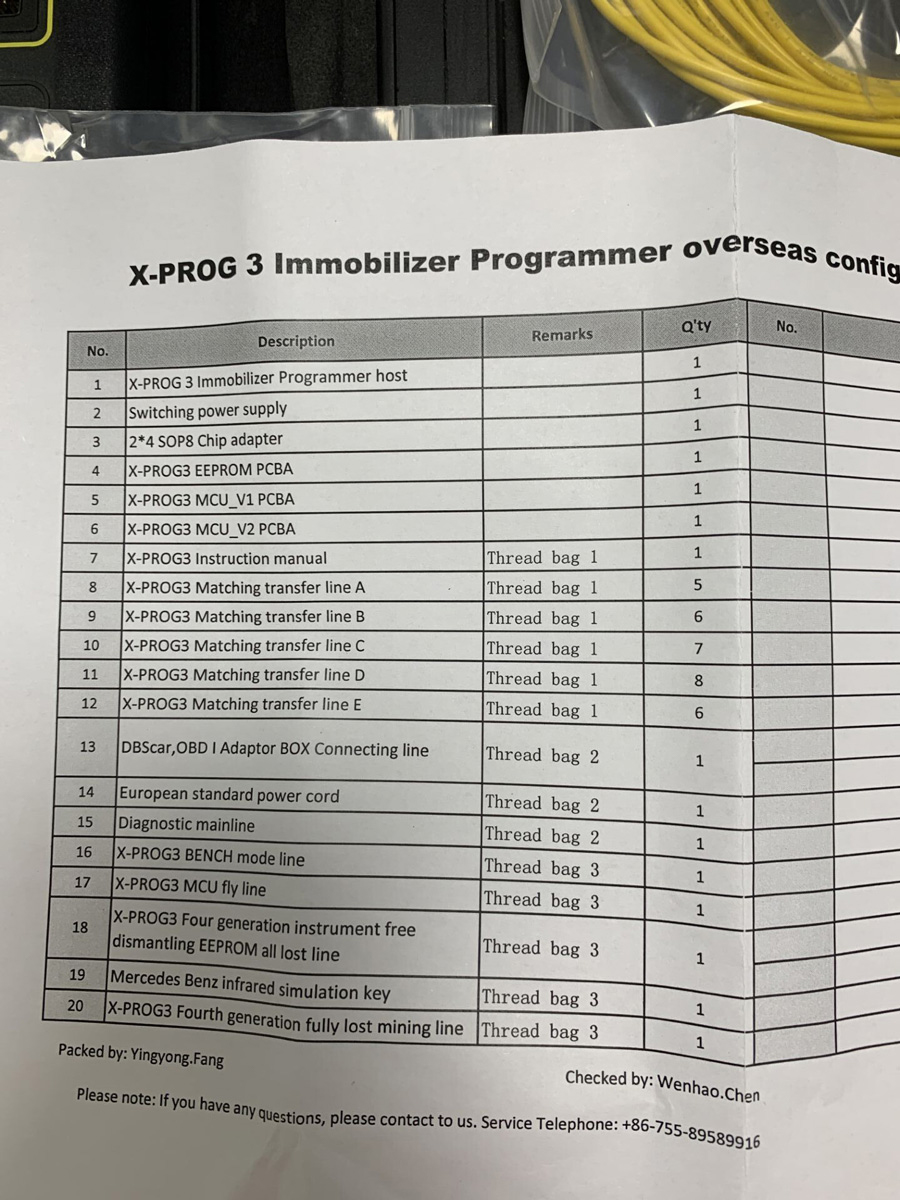

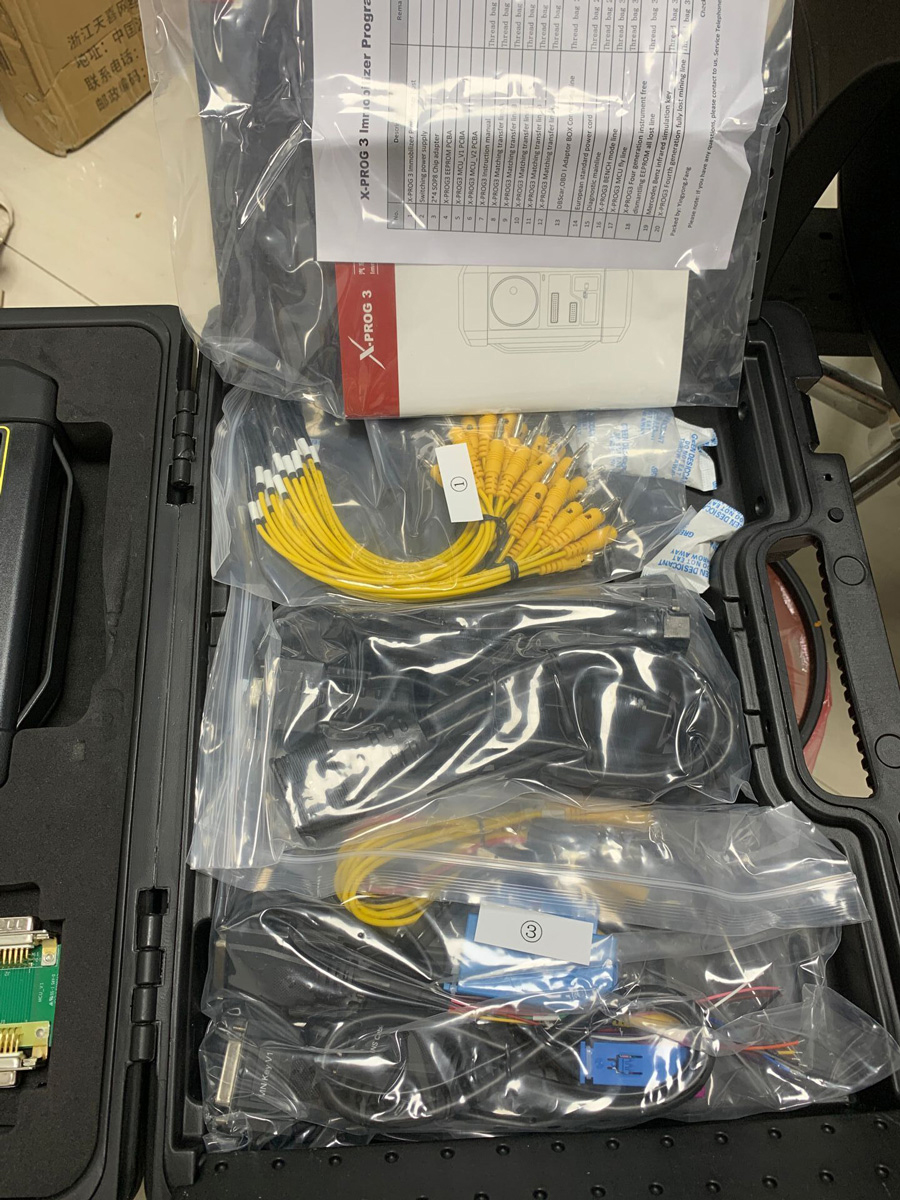

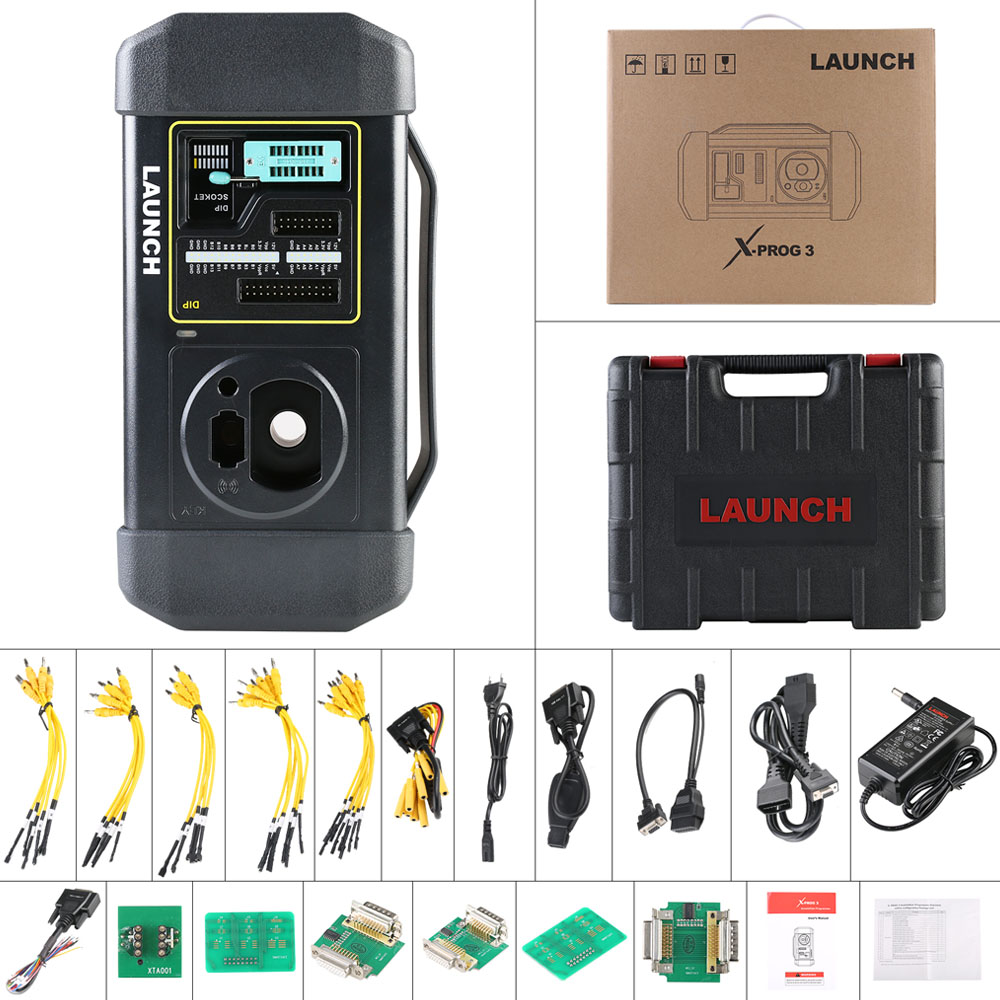

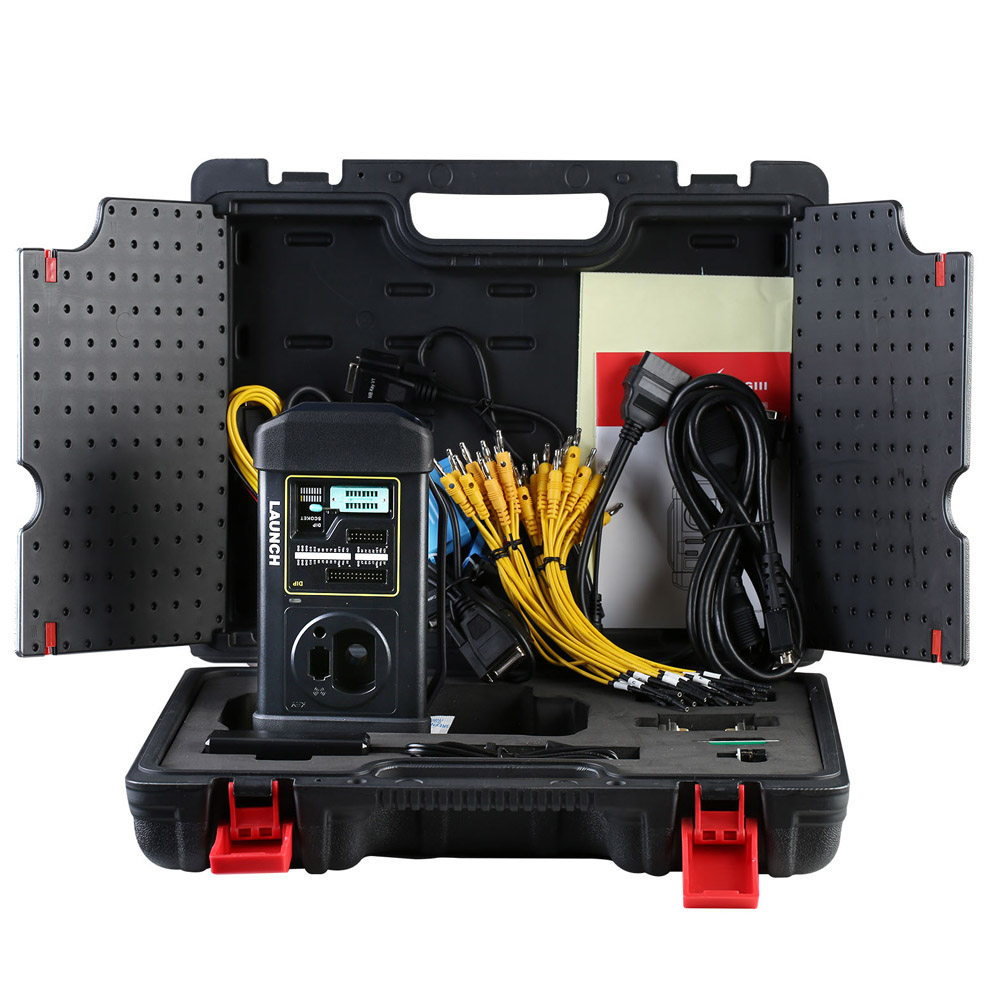

Package List:
1set x Launch X-PROG 3
