Autel Maxisys Ultra Full Systems Diagnostics Tool ECU Programming & Coding With 5-in-1 VCMI Topology Map 36+ Service Functions
MaxiSys Ultra Video
https://www.autel.com/c/www/mk3/3525.jhtml

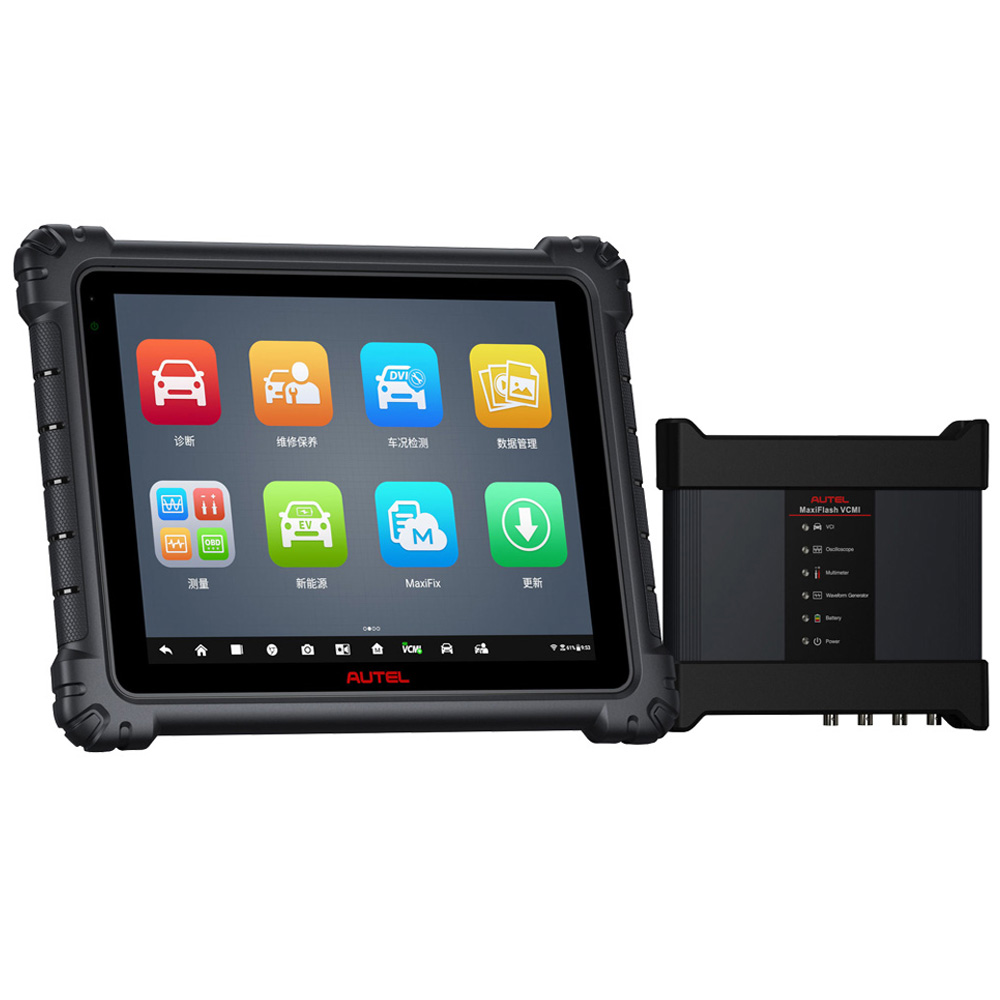

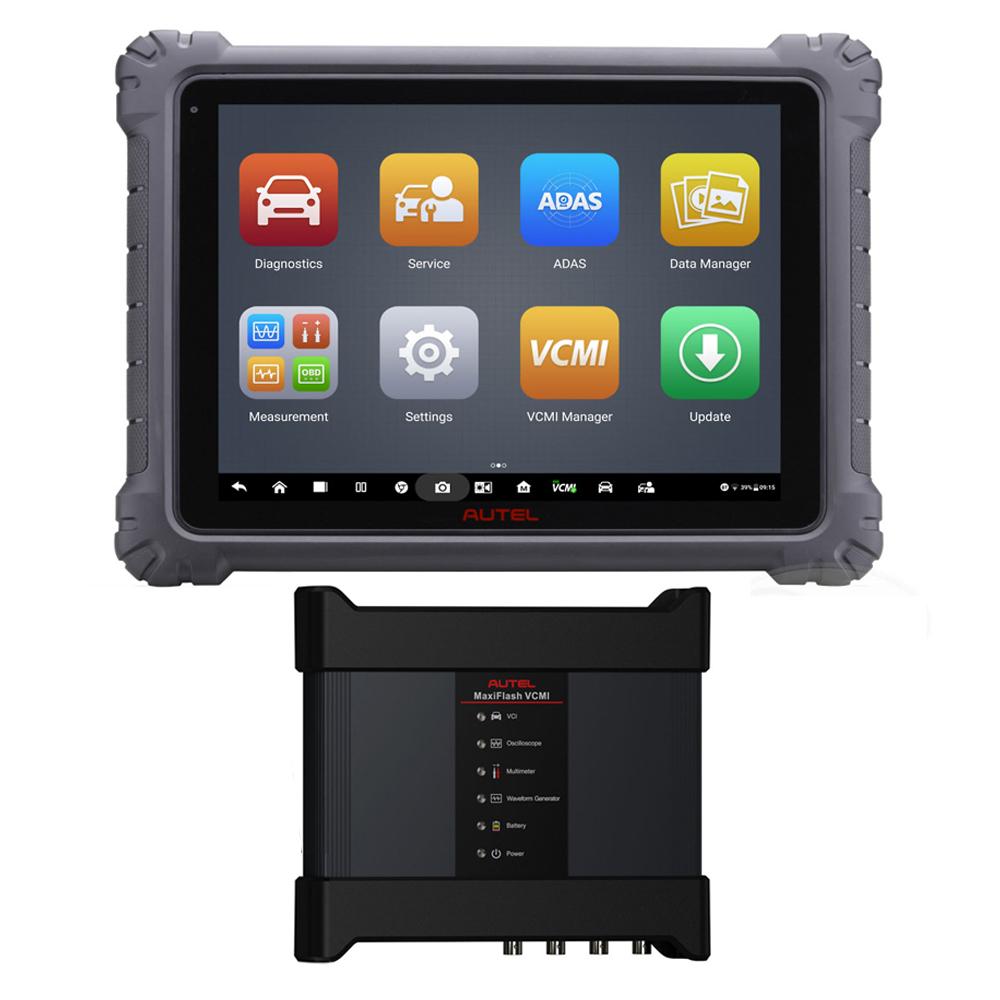

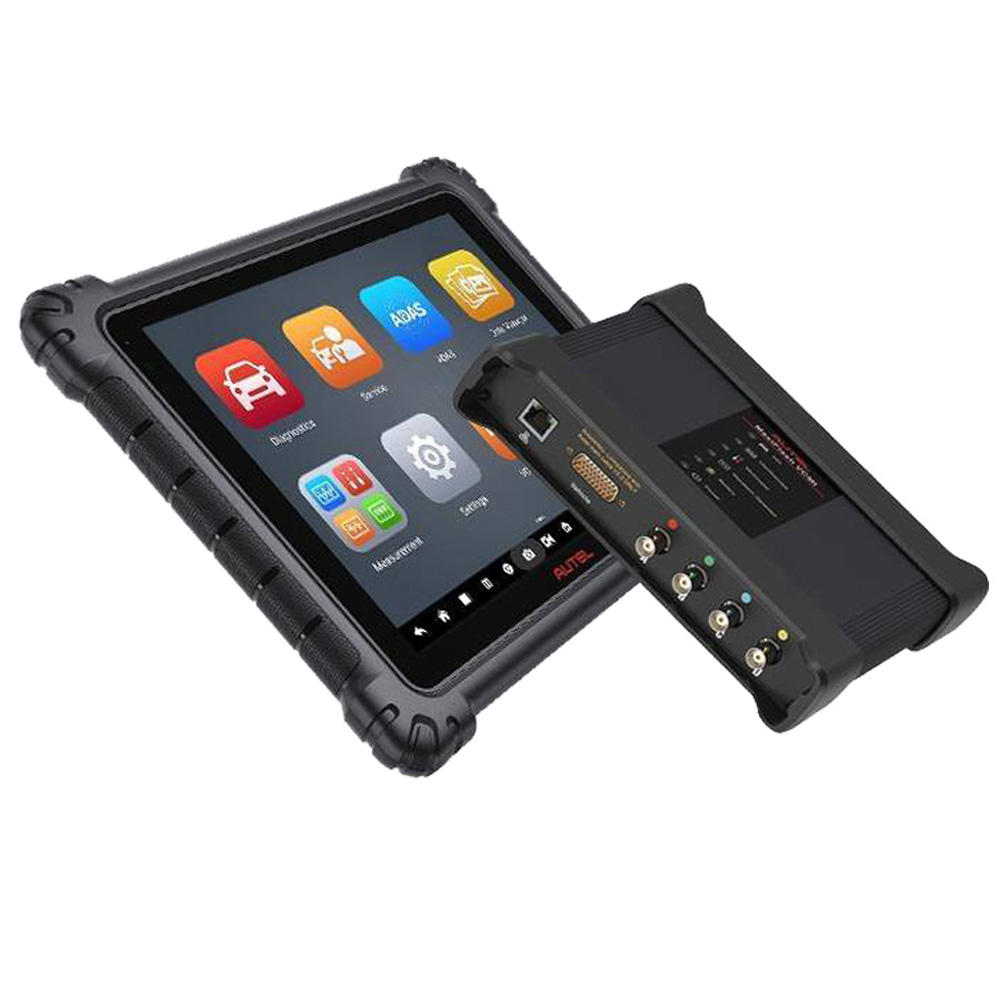

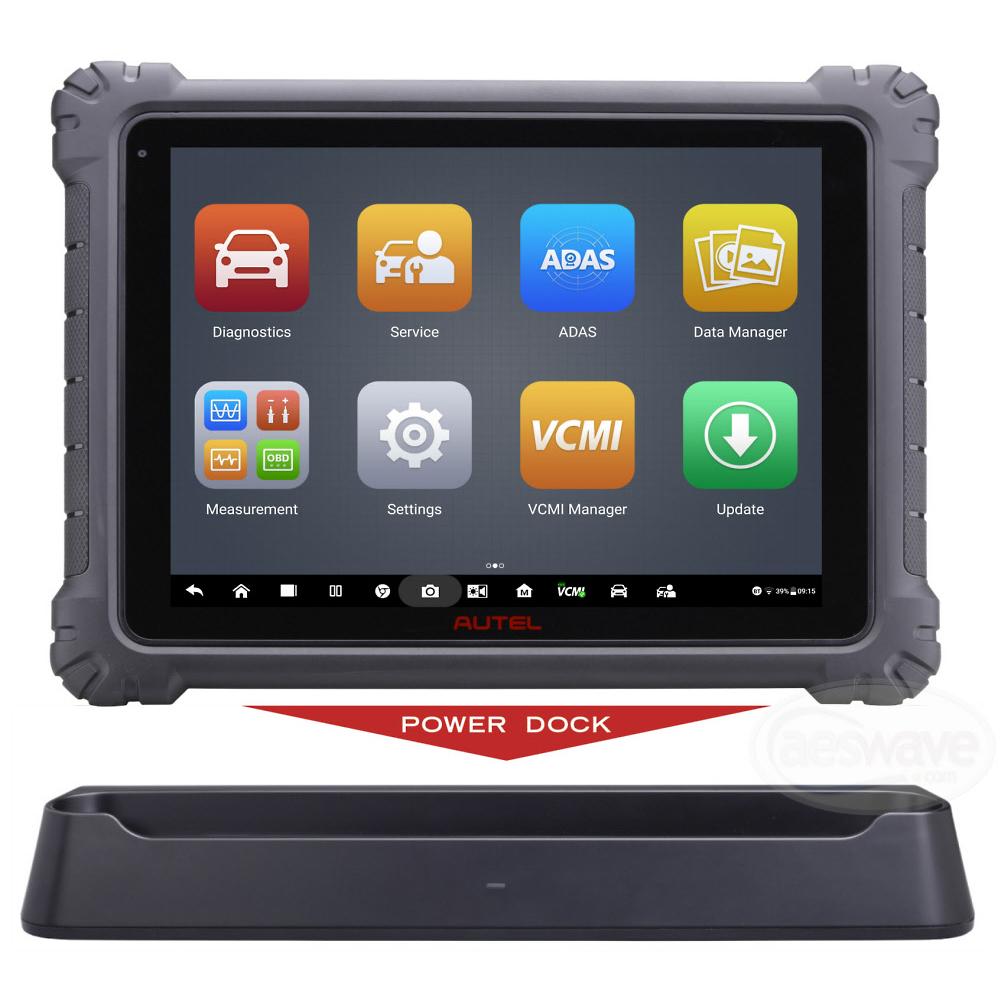

The MaxiSys Ultra is Autel’s most ambitious diagnostics tablet designed to maximize technician intelligence. It features a 13-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced AutoSCAN features and Intelligent Diagnostics options, the Ultra offers the technicians step-by-step repair guidance. The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan.
MaxiSys Ultra Descriptions :
1. Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
3. Automatic system and software updates with real-time push message notifications via internet
4. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
5. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
6. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

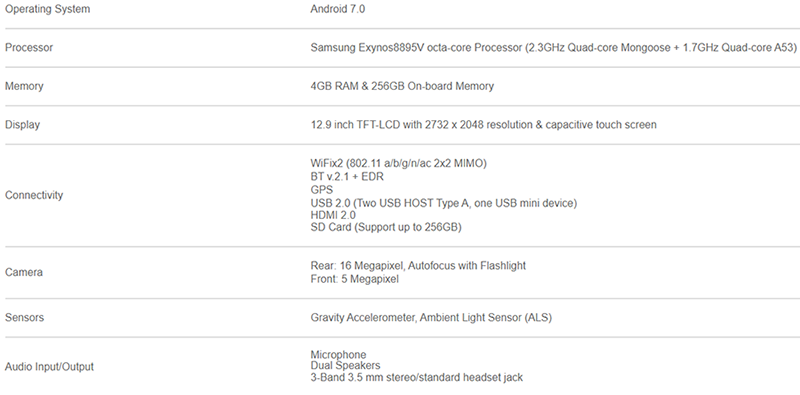

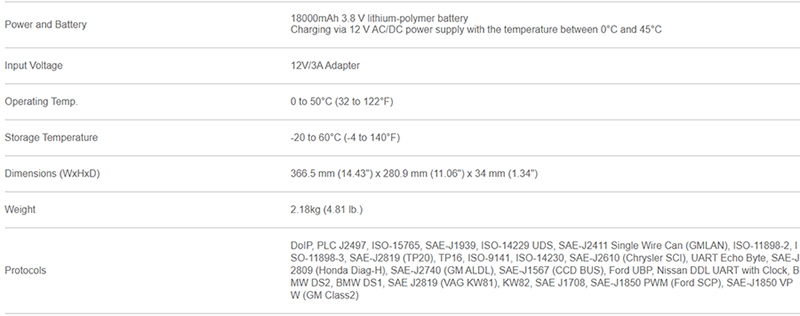

MaxiSys Ultra Specifications
MaxiSys Ultra Features

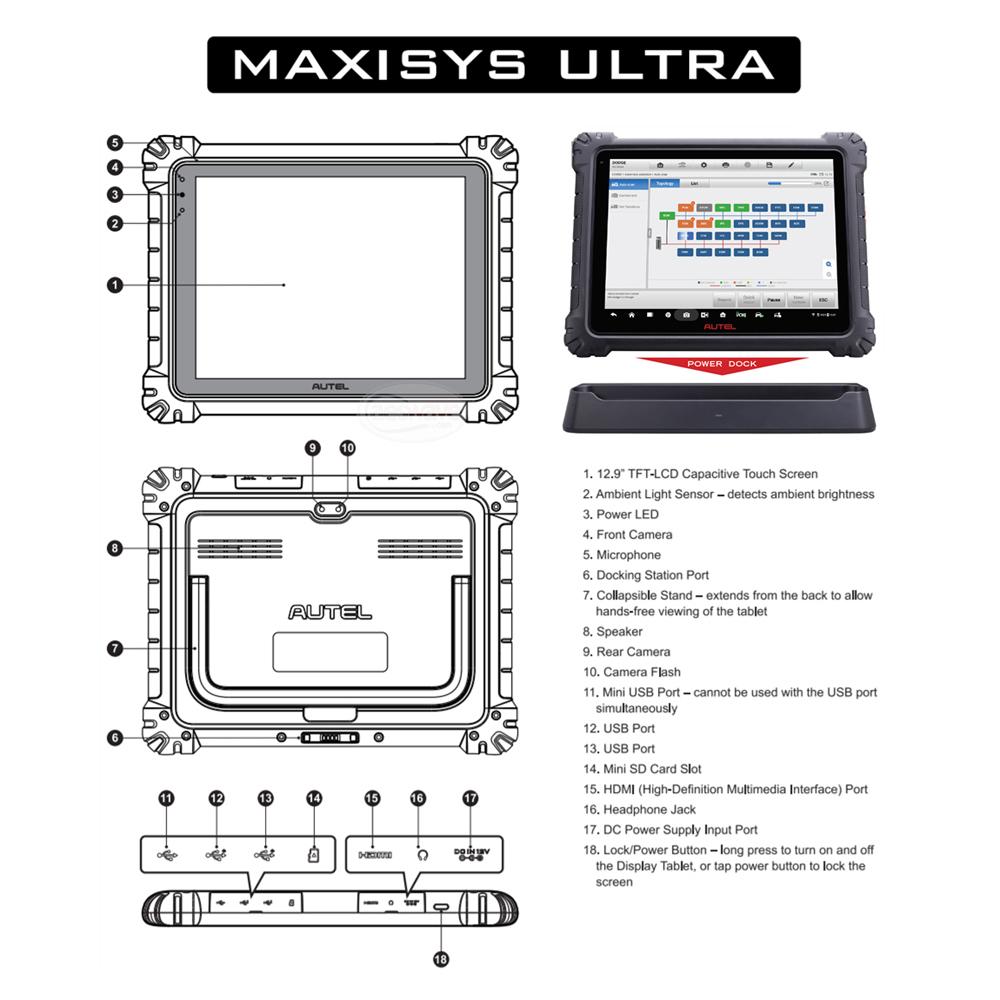

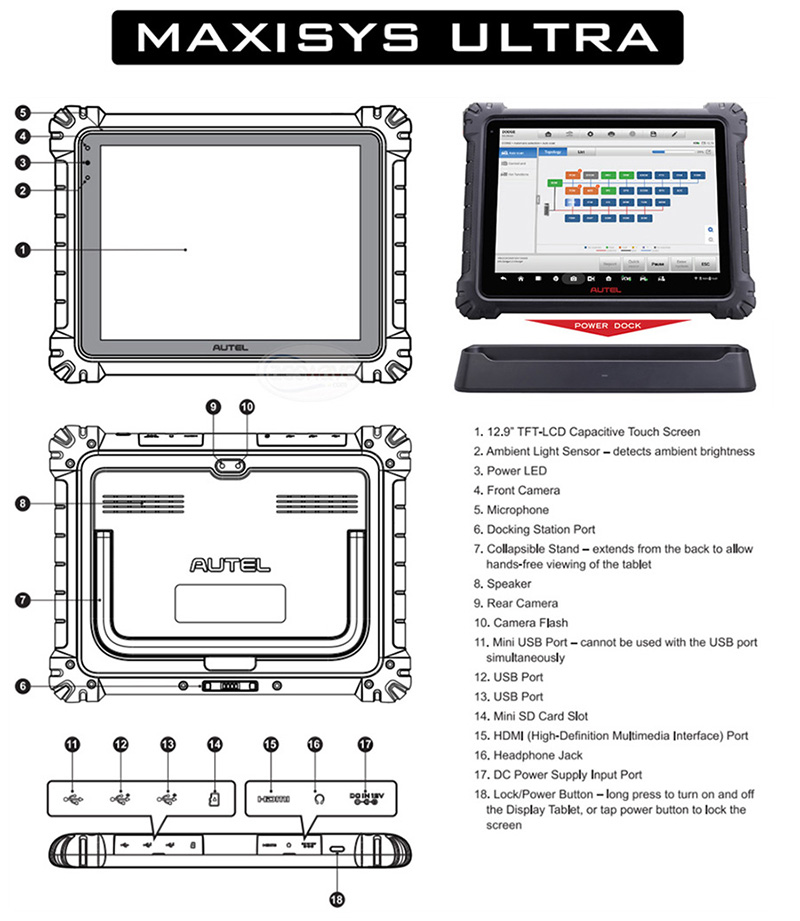

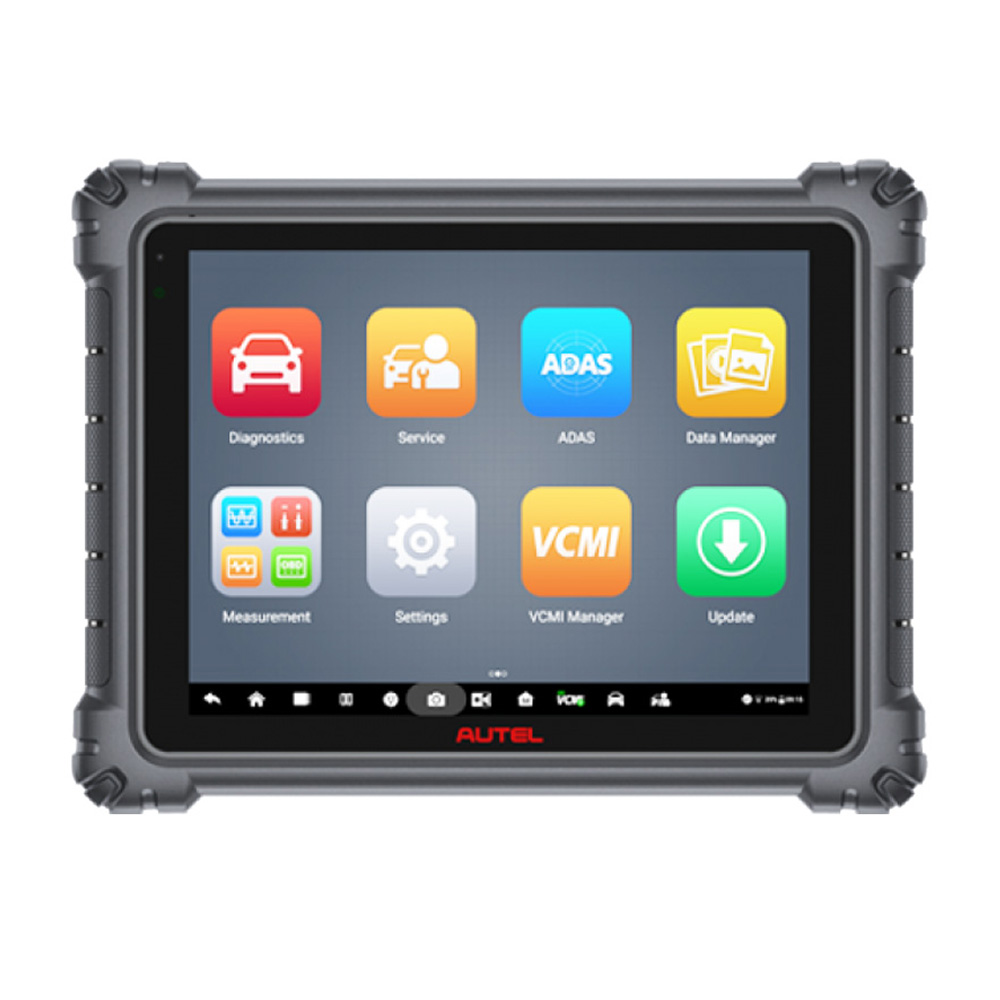

Large 12.9’’ Touchscreen (2732 x 2048)
Android 7.0
2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory
Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check

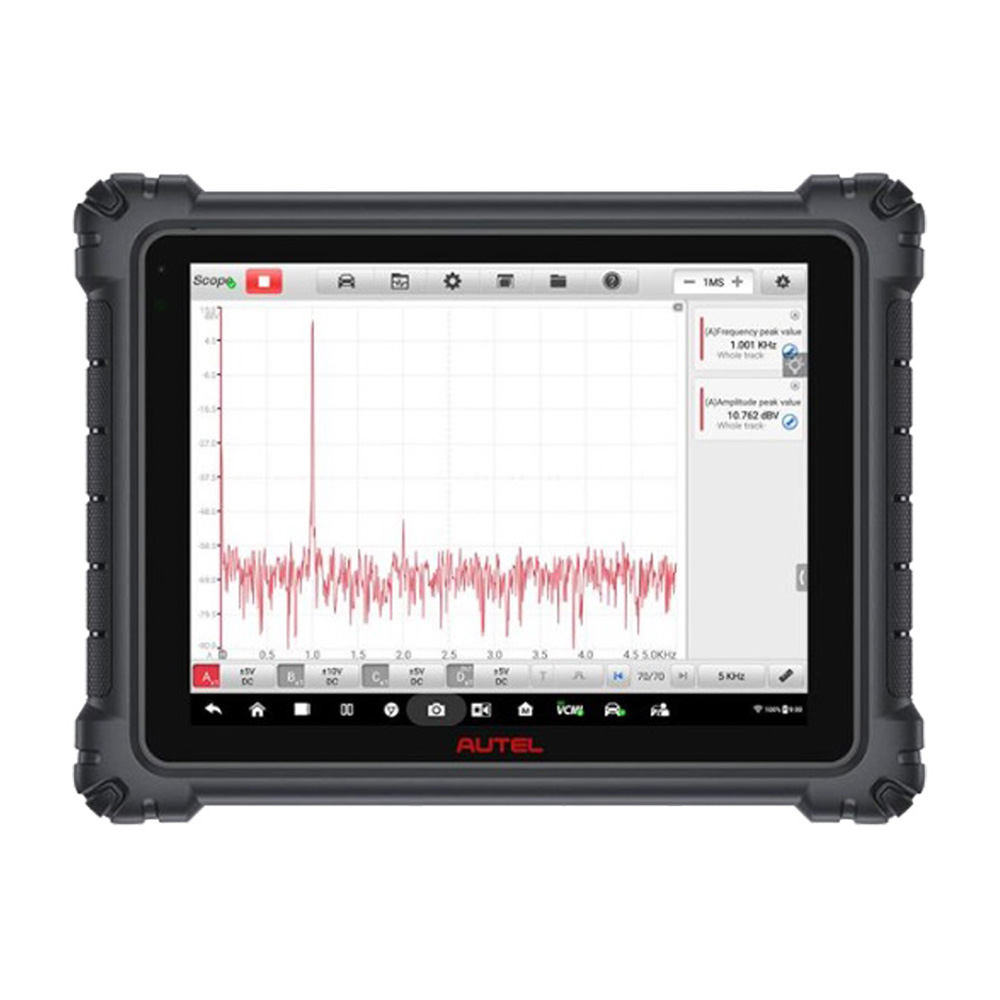

Oscilloscope Preset Guided & Component Tests / Waveform Library
New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
Split Screen Multi-Application Function / Dual Wi-Fi Connection

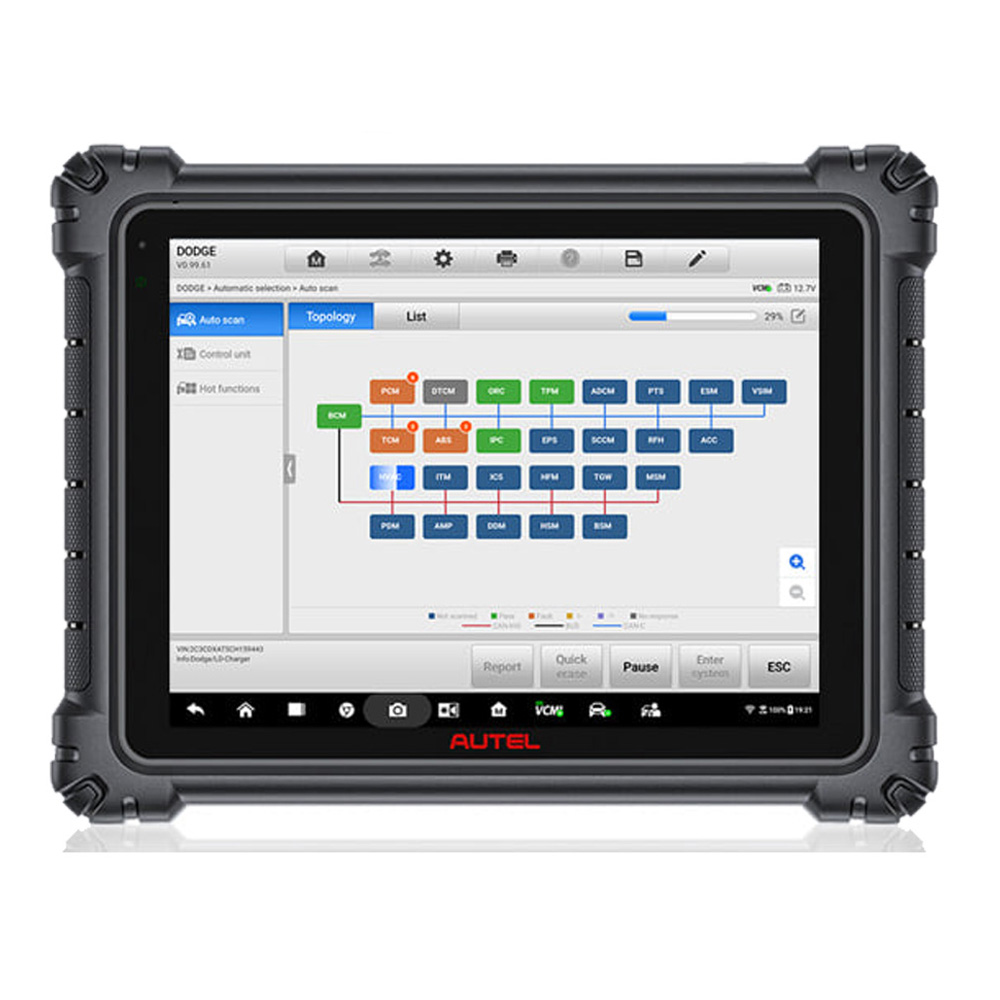

Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
Relevant Cases: DTC Troubleshooting / Repair Tips Video Library
Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
Code-Related Technical Service Bulletins (on select vehicles)
License Plate Reader
ScanVIN: Barcode or Text Recognition with Camera
Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account (sold separately)

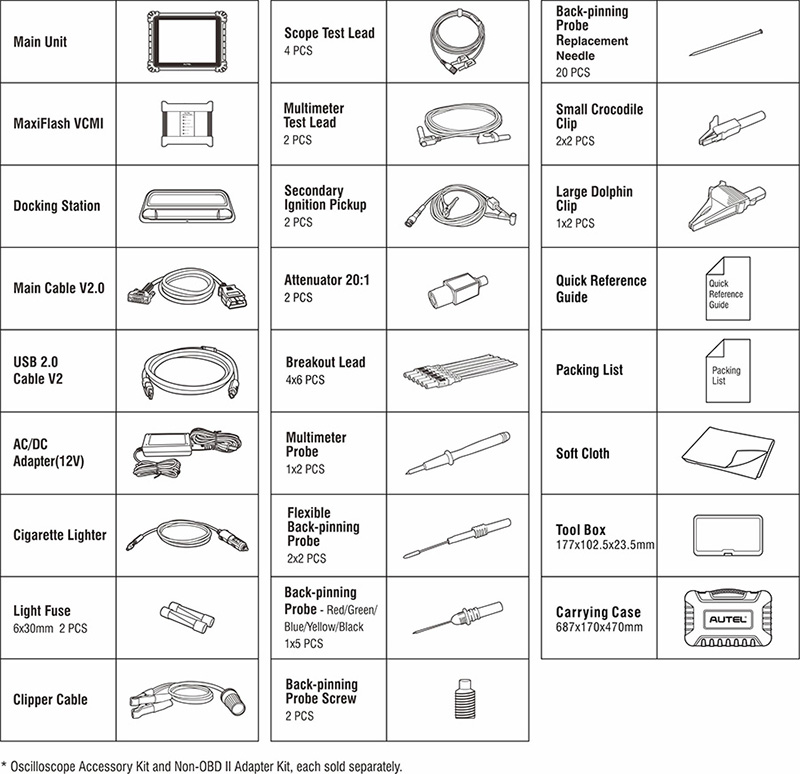

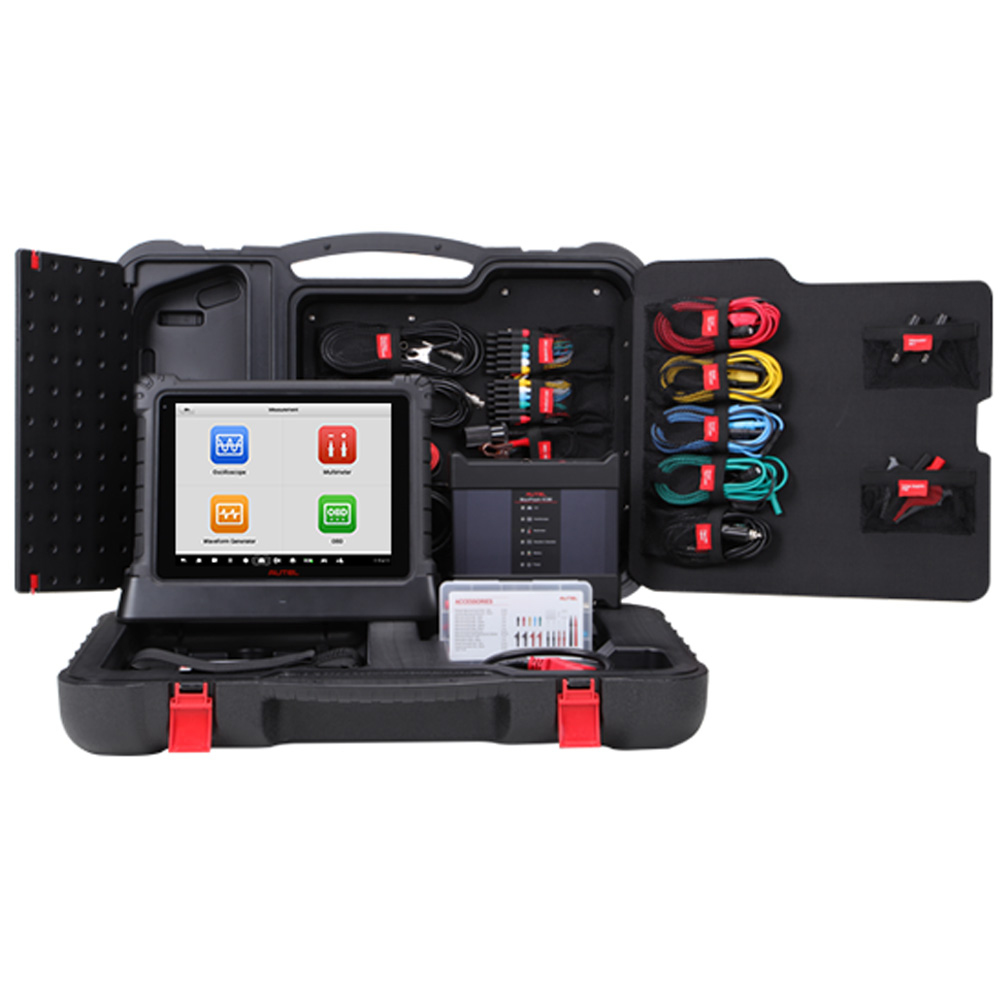

Includes Docking Station, Cables, Scope Connectors, Carrying Case
Enhanced Diagnostic Reports: PreSCAN & PostSCAN
18000mAh - 8hrs Continuous Use
16MP Rear Camera & 5MP Front Camera
1-year Warranty & Software Subscription

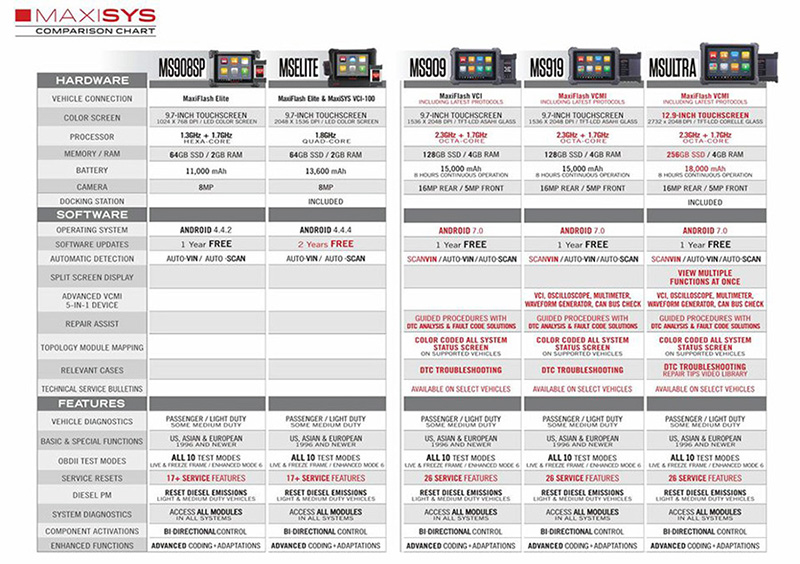

Autel Ultra Comparison
How the Autel Ultra differs from the Elite and MS908S/Pro:
Larger screen: 12.9-inch touchscreen
More memory: 256GB Memory
VCI interface with updated J2534 includes oscilloscope, waveform generator, multimeter, CanBUS tester
Topology M Module Listing CAN BUS Tree
Split screen view to view two different functions
Faster processor
Does not include early OBD-II adapters
Android 7.0
Autel Ultra Accessories
